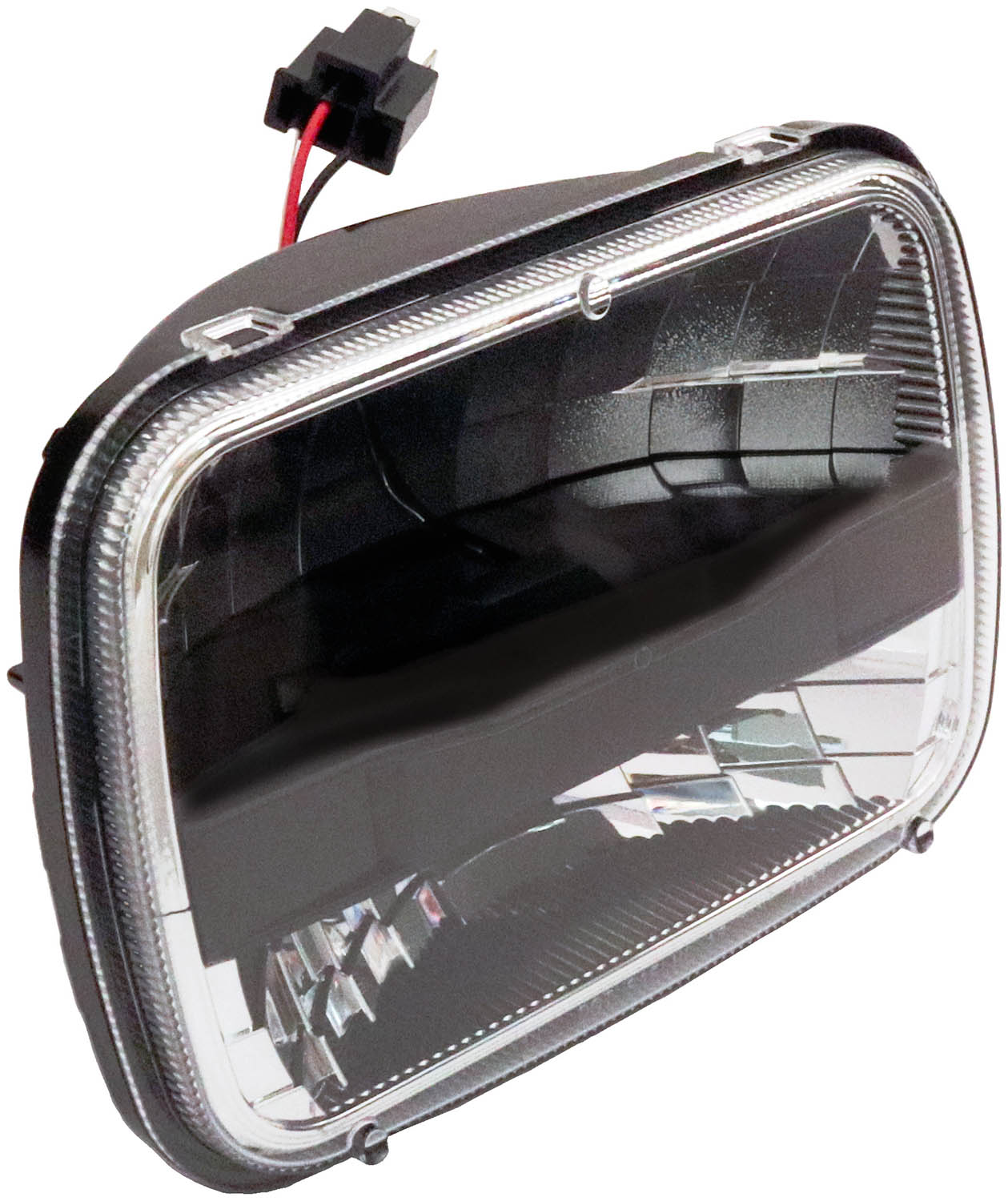

705C
Rectangular Headlight; 5 inchx7 inch high & low beam; box
705C
Rectangular Headlight; 5 inchx7 inch high & low beam; box
- Rectangular Headlight
- SAE Type 2B1 high-low beam for vehicles with one lamp per side
- Multi-volt design is compatible with both 12V and 24V systems.
- DOT-legal; exceeds FMVSS-108 and CMVSS-108 requirements.
- Hardwired leads terminated w/ standard H4 3-blade connector.
- 800 / 1600 lumen output (low / high beam).
- Draws only 0.51-2.23 amps.
- 5200 – 6000k color temperature closely matches natural daylight.
- Certified to meet IP67 ingress protection rating.
- Heavy-duty polycarbonate / cast alloy housing.
Standard Order Quantity: 1
| V705C | Rectangular Headlight; 5 inchx7 inch high & low beam; display box |
| Bulb Technology | LED |
| Lens Color | Clear |
| Shape | Rectangular |
| Voltage | 12V / 24V |
| Color Temperature | 5200 - 6000k |
| Multi-Volt | Yes |
| Light Color | White |
| Regulatory Compliance | DOT |
| Container Type | Box |
| Bulb/Diode Count | 1 |
| termination | H4 |

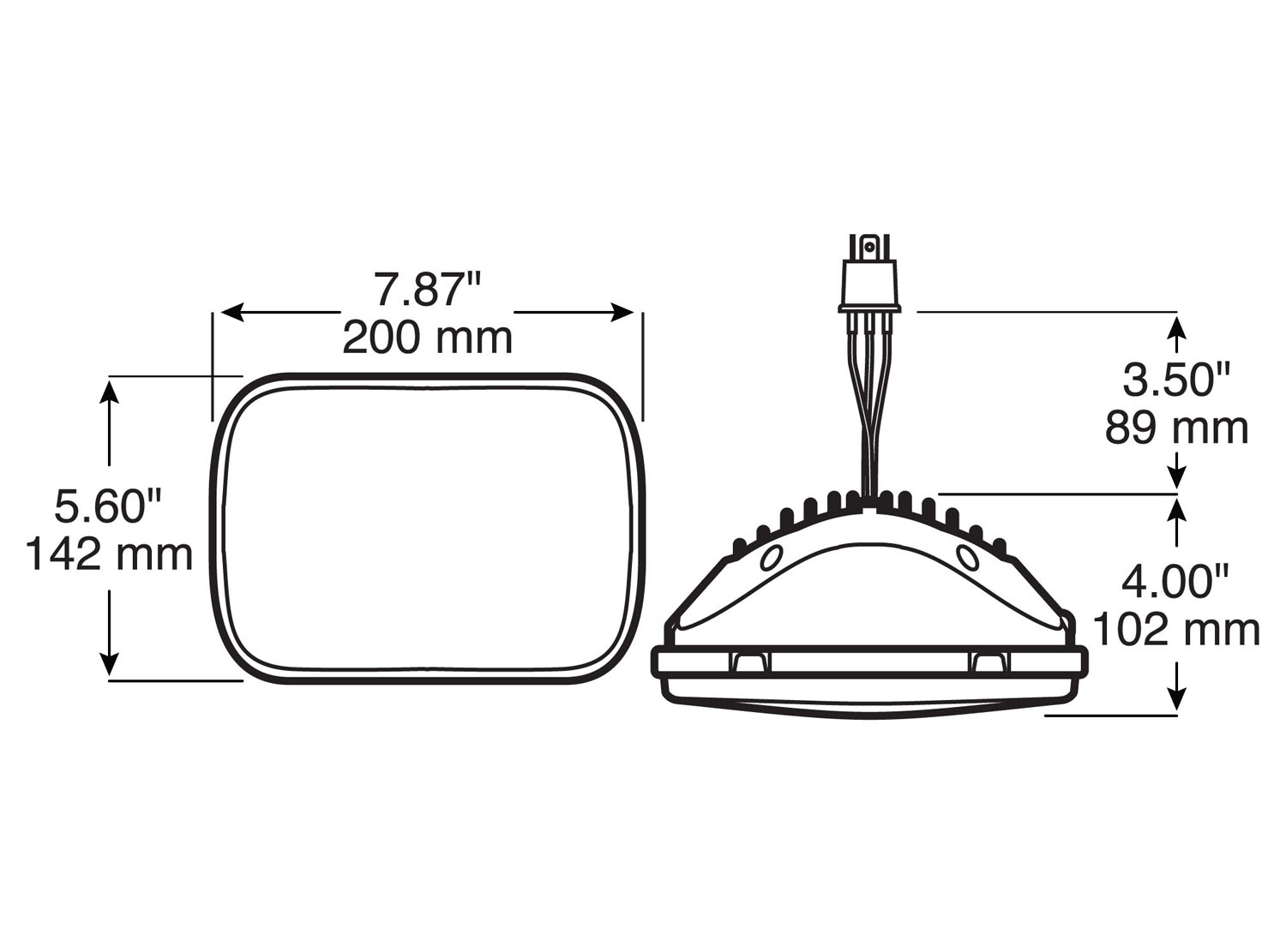

| Height | 5.6 Inch |
| Length | 7.87 Inch |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Width | 4 Inch |
| Bulbs Included | Yes |
| Grade Type | Premium |
| Mounting Hardware Included | No |
| Street Legal | Yes |
| Truck-Lite Interchange | 27450C |
