M820A-10

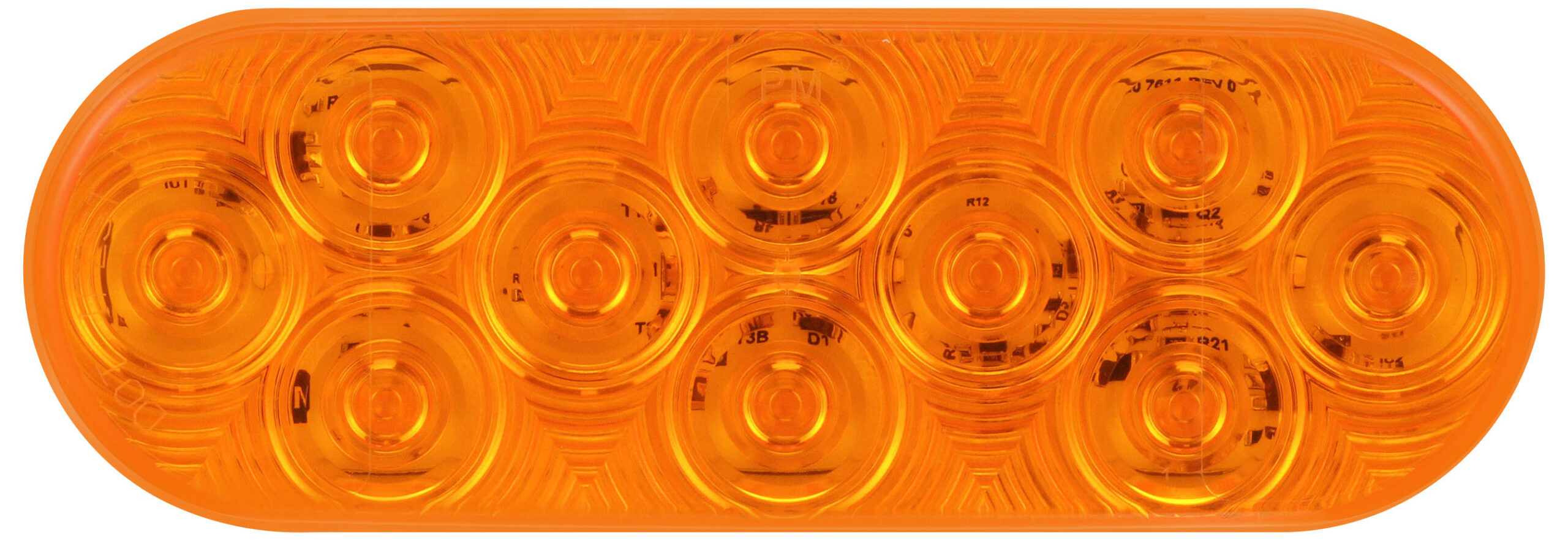

Lumen X ® AMP Oval Front & Rear Turn Signal; grommet; bulk pack
M820A-10
Lumen X ® AMP Oval Front & Rear Turn Signal; grommet; bulk pack
- -MP kit versions substitute 417-491MP converter plug.
- 820 kit includes light, grommet and 817-49 plug.
- 823 kit includes light and 817-49 plug.

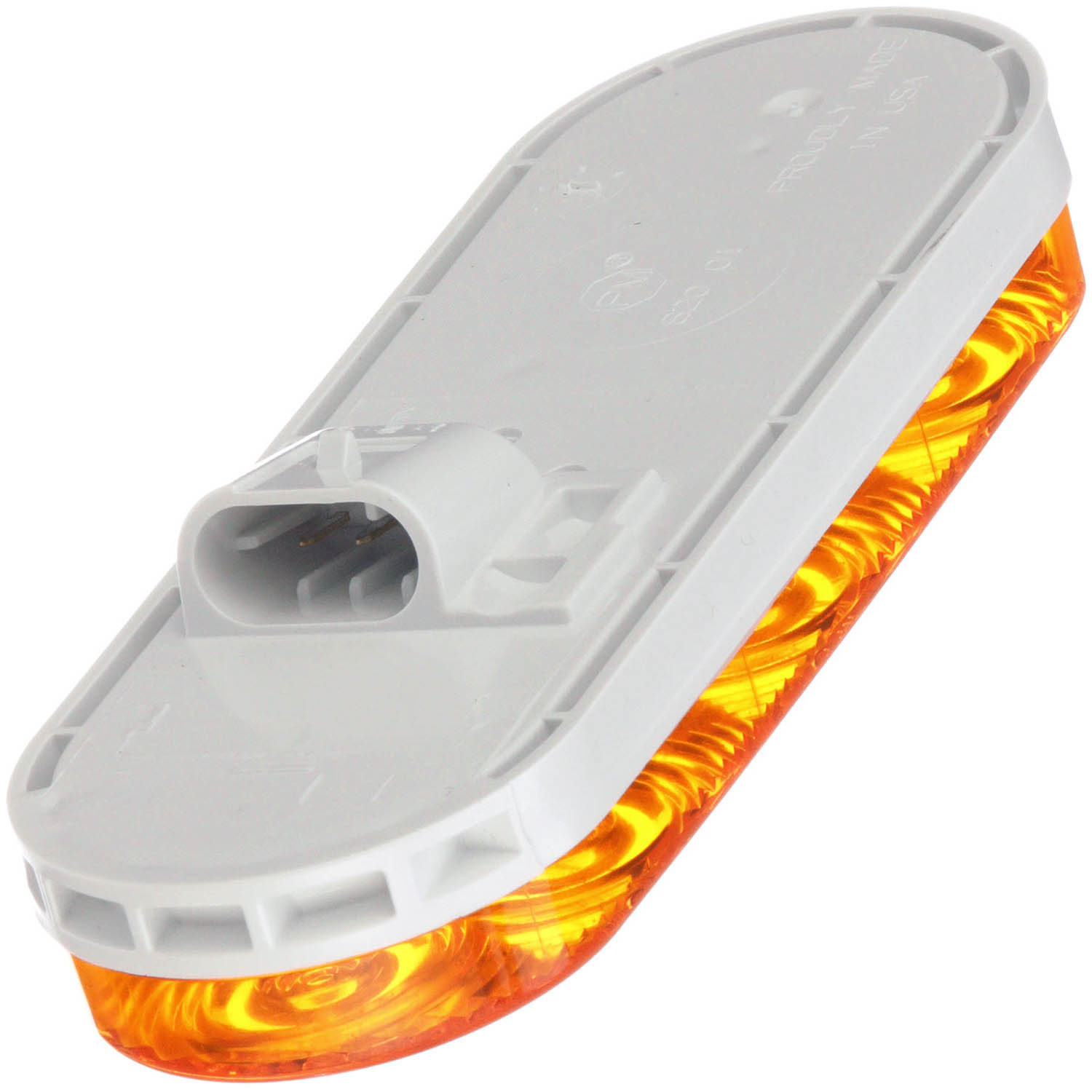

- Integral 30 degree angle silicone-sealed AMP receptacle.
- Low intensity function meets DOT marker requirements.
- Meets DOT requirements for both FRONT and REAR turn signal in any horizontal / vertical / 360 degree position.
- Multi-volt design compatible with 12 & 24 volt systems.
- Oval Front & Rear Turn Signal
- See matching backup light on Peterson LED Catalog page 48.
- See matching stop / turn / tail light on Peterson LED Catalog page 5.
Standard Order Quantity: 50
| 823KA-10-MP | Lumen X ® AMP Oval Front & Rear Turn Signal; flange, male plug kit; poly bag |
| 820KA-10-MP | Lumen X ® AMP Oval Front & Rear Turn Signal; grommet, male plug kit; poly bag |
| 820A-10 | Lumen X ® AMP Oval Front & Rear Turn Signal; grommet; poly bag |
| M823ATL-10 | Lumen X ® Narrow Flange AMP Oval Front & Rear Turn Signal; narrow, 2-screw flange; bulk pack |
| 820KA-10 | Lumen X ® AMP Oval Front & Rear Turn Signal; grommet kit; poly bag |
| 823KA-10 | Lumen X ® AMP Oval Front & Rear Turn Signal; flange kit; poly bag |
| M823A-10 | Lumen X ® AMP Oval Front & Rear Turn Signal; flange; bulk pack |
| 823A-10 | Lumen X ® AMP Oval Front & Rear Turn Signal; flange; poly bag |
| Bulb Technology | LED |
| Length | 6.5 Inch |
| Lens Color | Amber |
| Shape | Oval |
| Height | 2.31 Inch |
| Integral Reflex | No |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Width | 1.45 Inch |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Light Color | Amber |
| Voltage | 12V / 24V |
| Bulb/Diode Count | 10 |
| Mounting Type | Grommet |
| termination | AMP |
| Container Type | Bulk Pack |
| Submersible | Yes |
