1218F-9

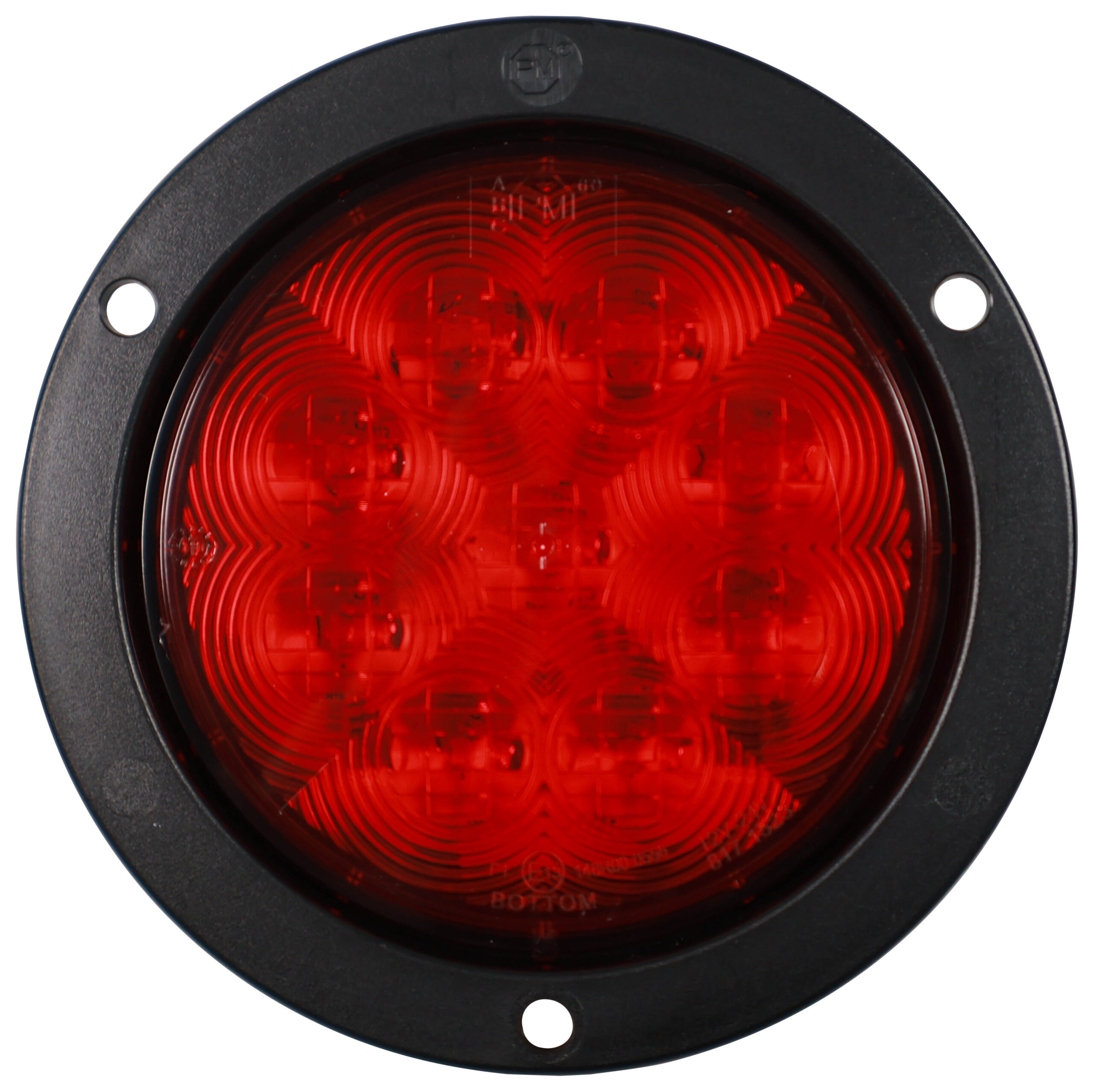

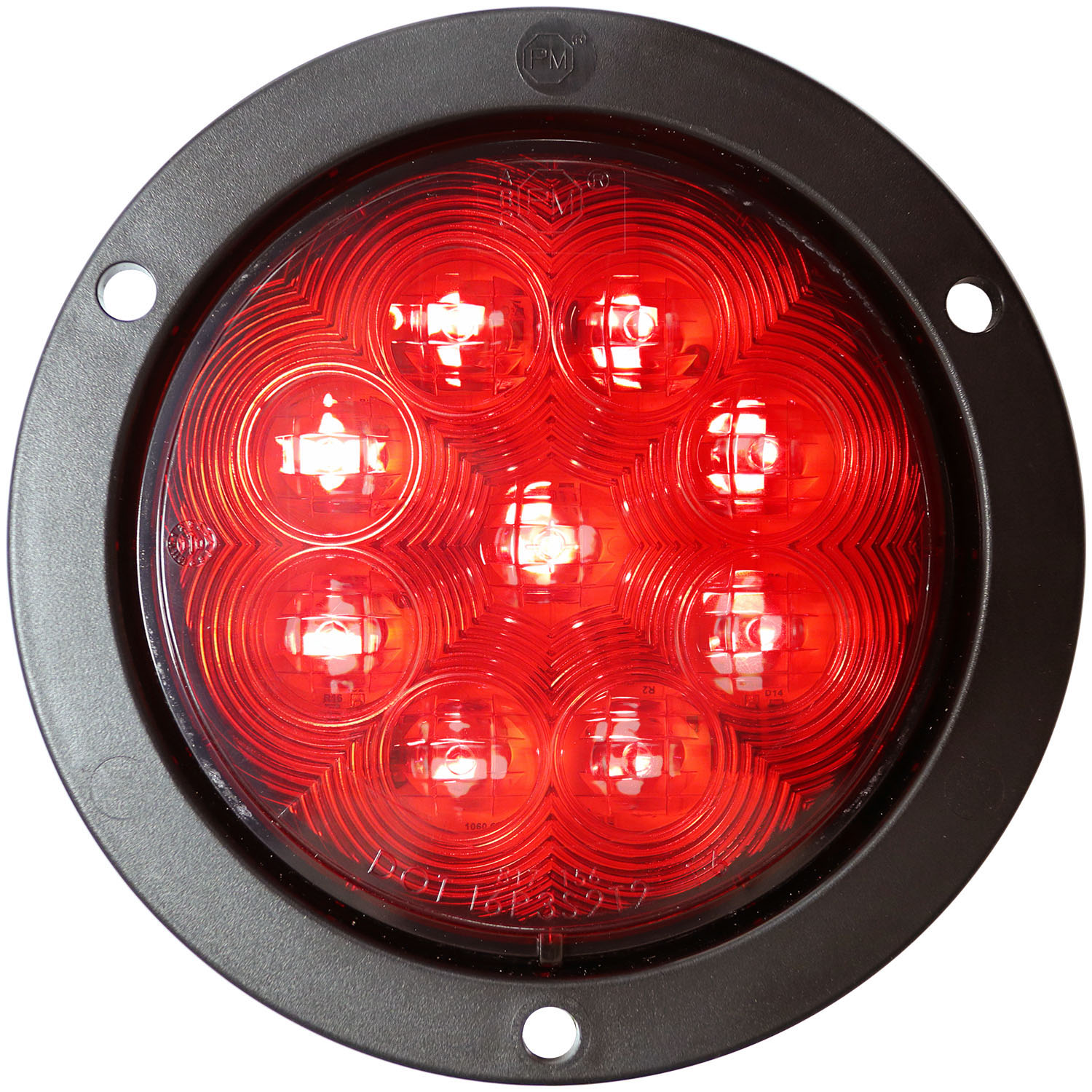

LED ECE 4 inch Round Rear Fog Light; red, flange mount; poly bag
1218F-9
LED ECE 4 inch Round Rear Fog Light; red, flange mount; poly bag
- 108 mm (4-1 / 4") round rear fog light.
- 9 diodes.
- Assembled in USA.
- Certified to meet ECE requirements.
- Does not require “Top” positioning to meet FMVSS 108 standard.
- ECE compliant.
- Grommet fits 114 mm hole in material up to 6 mm.
- Lumen X ® lens and circuitry.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Replaces part nos. 1217F & 1218F.
- Sealed lens and housing meets IP67 ingress level.
- See Peterson Master Catalog pages 184-185 & 187 for mounting options.
- Voltage Regulated.
Standard Order Quantity: 1
| 1217F-9 | LED ECE 4 inch Round Rear Fog Light; red, grommet mount; poly bag |
| Bulb Technology | LED |
| Length | 5.5 Inch |
| Lens Color | Red |
| Voltage | 12V / 24V |
| termination | AMP |
| Multi-Volt | Yes |
| Mounting Type | Flange |
| Shape | Round |
| Container Type | Poly Bag |
| Ground Type | Wire |
| Regulatory Compliance | ECE |
| Bulb/Diode Count | 9 |
| Light Color | Red |
| Diameter | 5.5 Inch |
| Height | 5.5 Inch |
| Integral Reflex | No |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Width | 1.49 Inch |
