824C-MV

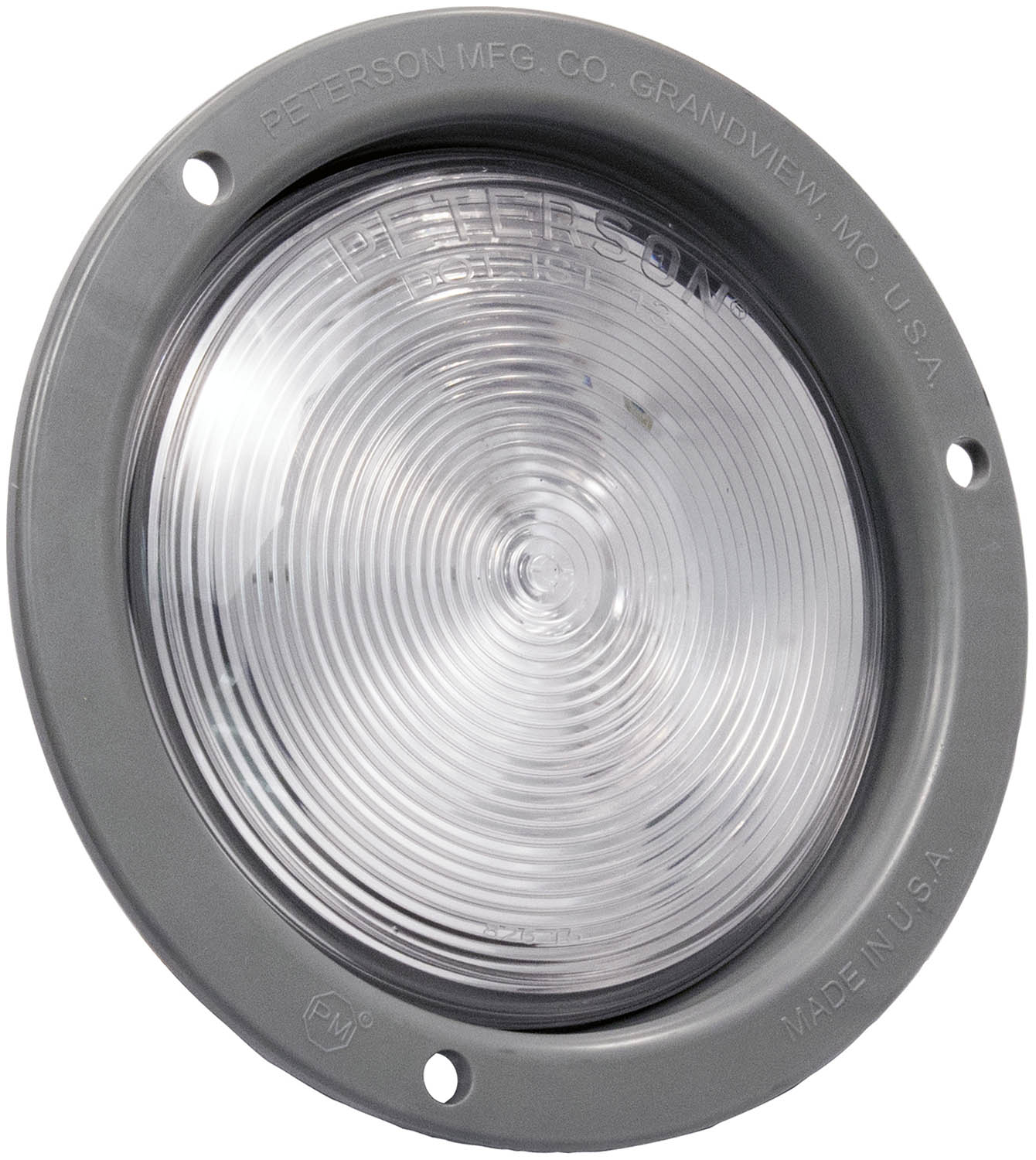

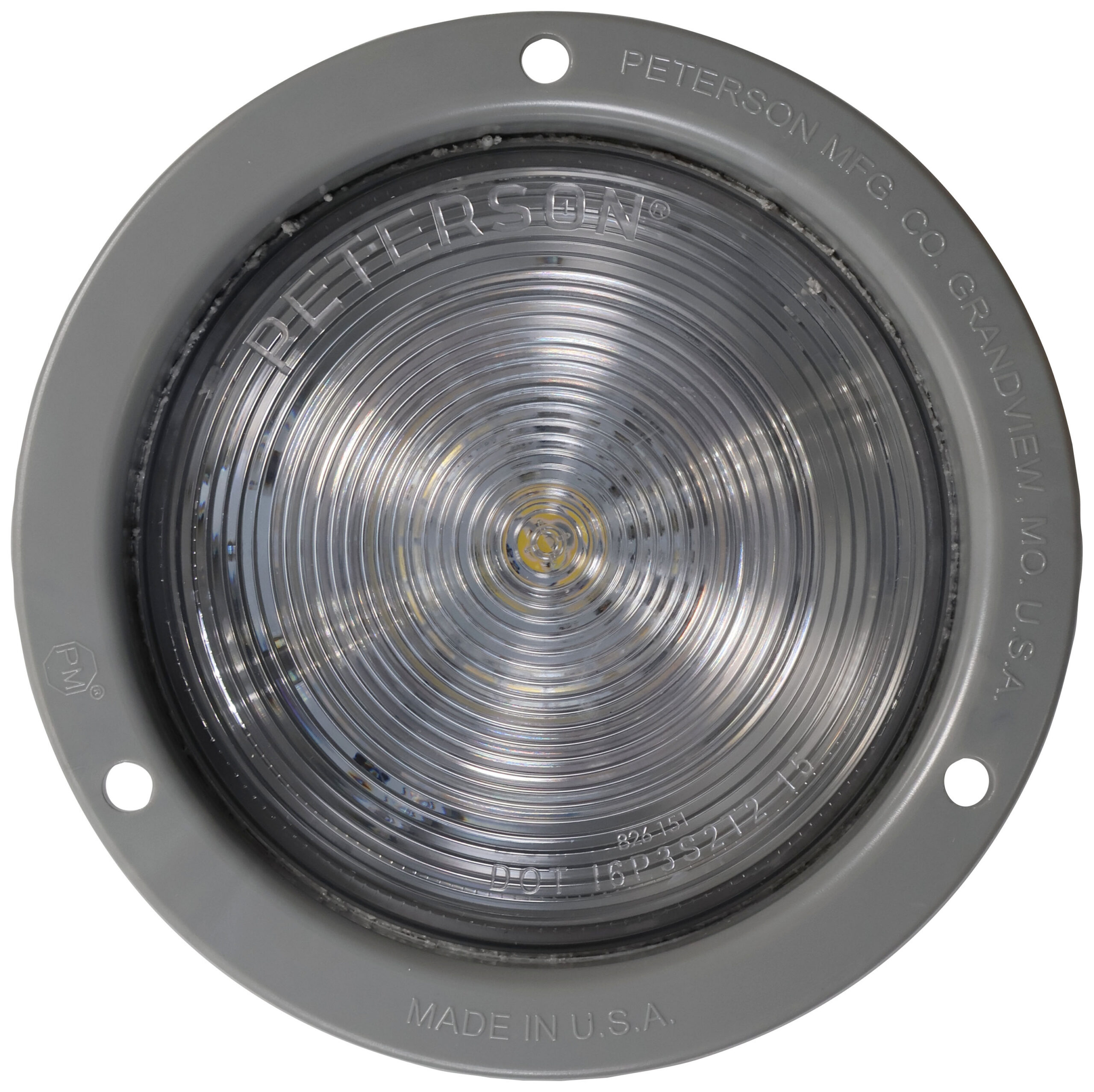

Single Diode 4 inch Round Back-Up Light; flange, multi-volt; poly bag
824C-MV
Single Diode 4 inch Round Back-Up Light; flange, multi-volt; poly bag
- 4" Round Back-Up Light
- Single diode LED light with incandescent lens look.
- Multi-volt design compatible with 12 & 24 volt systems.
- PL3 socket integrated into housing with locking tabs for added plug retention.
- Does not require “Top” positioning.
- Flange mount version has extra-rugged recessed lens.
- Grommet mount version requires 426-18 grommet.
- See matching stop / turn / tail light on page 8.
- See matching turn signal light on page 17.
Standard Order Quantity: 1
| Voltage | 12V / 24V |
| Lens Color | Clear |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Round |
| Bulb/Diode Count | 1 |
| Mounting Type | Flange |
| Light Color | White |
| termination | PL3 |
| Bulb Technology | LED |
| Container Type | Poly Bag |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Diameter | 5.5 Inch |
| Height | 5.5 Inch |
| Length | 5.5 Inch |
| Width | 2.17 Inch |
| Submersible | Yes |
