717C
7 inch Back-Up / Dome Light; surface mount; poly bag
717C
7 inch Back-Up / Dome Light; surface mount; poly bag

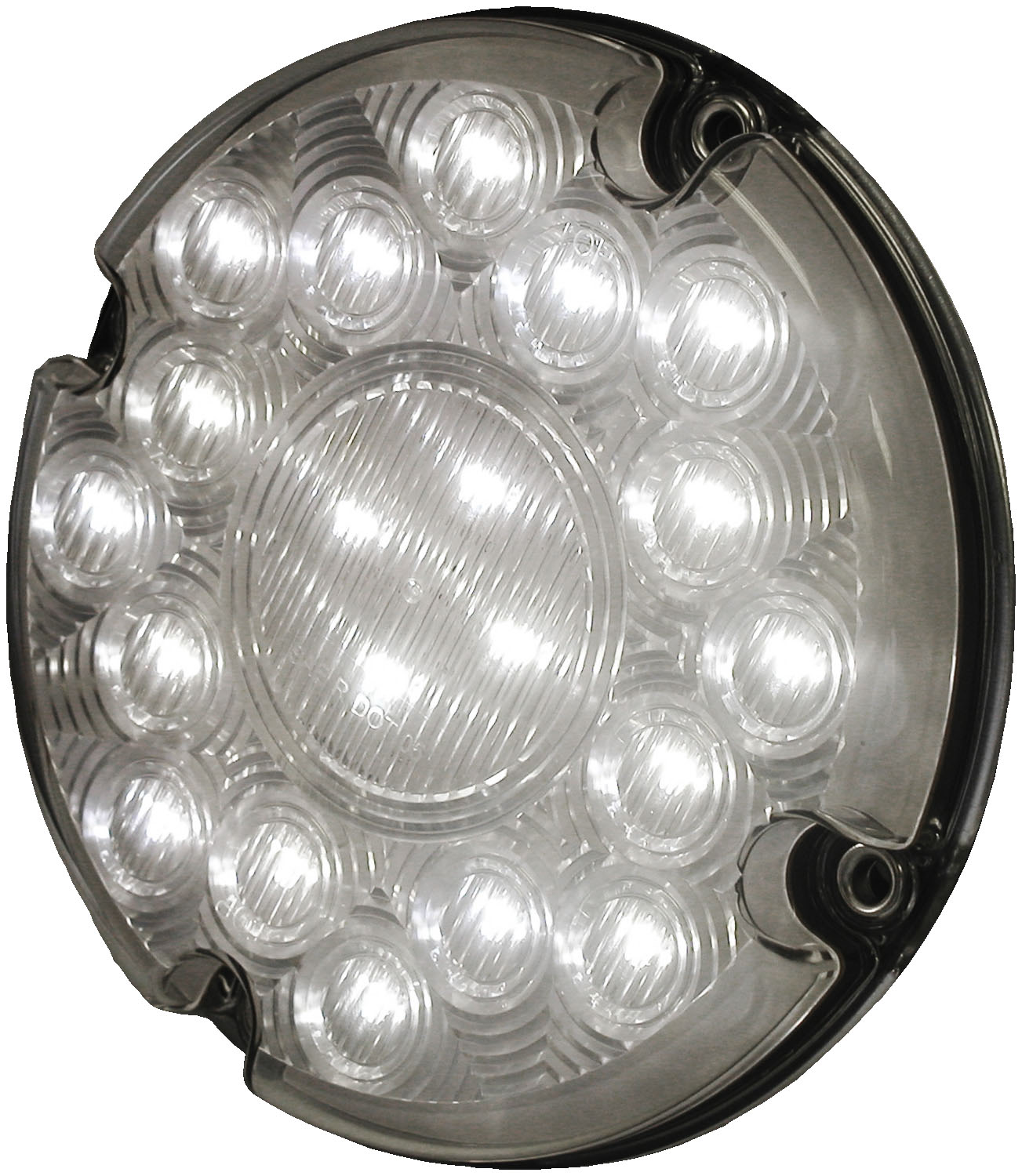

- 7" Back-Up / Dome Light
- Round, 7-inch size popular for bus and transit applications.
- Surface mount with standard 4-hole mounting pattern.
- Multi-volt design compatible with 12 & 24 volt systems.
- Hardwired leads terminated with .180 male bullet and ring terminal for ground.
- Comes standard with mounting gasket providing additional protection between lamp and mounting surface.
- See matching red stop / turn / tail light on page 10.
- See matching amber turn signal on page 17.
Standard Order Quantity: 1
| Voltage | 12V / 24V |
| Lens Color | Clear |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Round |
| Bulb/Diode Count | 20 |
| Mounting Type | Surface |
| Light Color | White |
| termination | .180 Bullet |
| Bulb Technology | LED |
| Container Type | Poly Bag |
| Integral Reflex | No |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Diameter | 7 Inch |
| Height | 7 Inch |
| Length | 7 Inch |
| Width | 1.5 Inch |
| Submersible | Yes |
