826C-7
Lumen X ® PL3 4 inch Round Back-Up Light; grommet; poly bag
826C-7
Lumen X ® PL3 4 inch Round Back-Up Light; grommet; poly bag

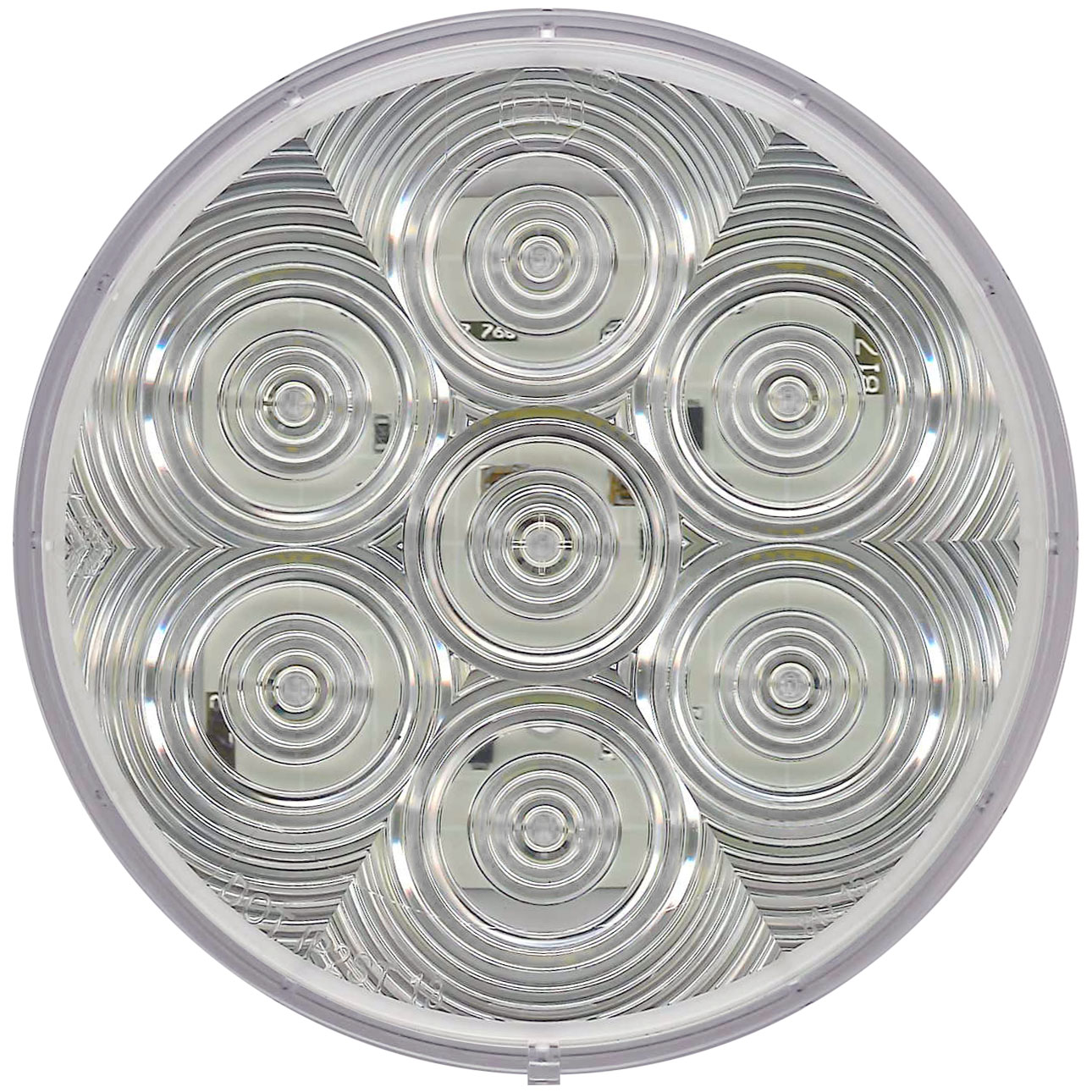

- 4" Round Back-Up Light

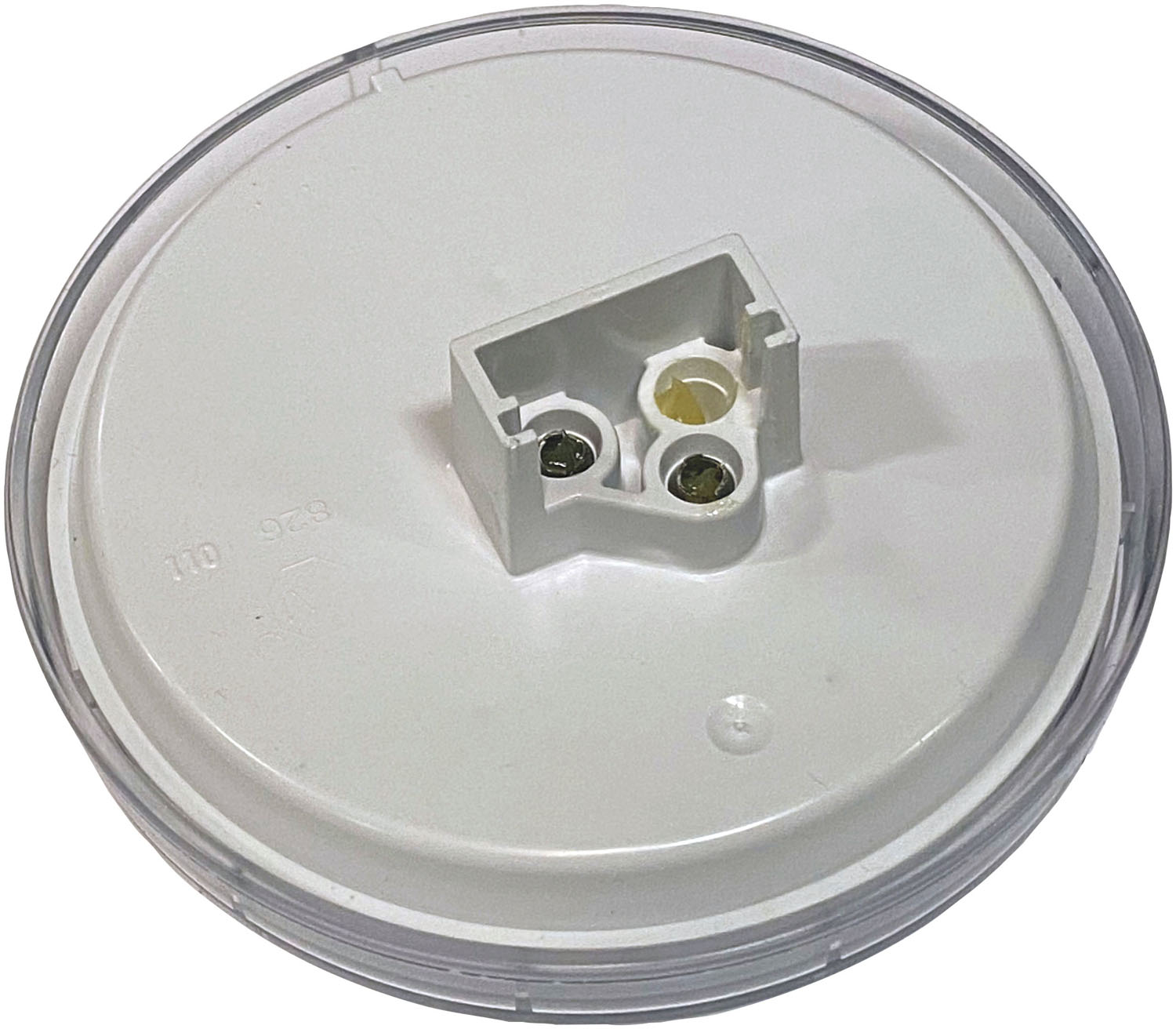

- PL3 socket integrated into housing.
- Single light meets DOT requirements when properly mounted.
- .Does not require “Top” positioning
- 826 kit includes light, grommet and 431-49 plug.
- 824 kit includes light and 431-49 plug.
- See matching stop / turn / tail light on page 4.
- See matching turn signal light on page 14.
Standard Order Quantity: 1
| 824KC-7 | Lumen X ® PL3 4 inch Round Back-Up Light; flange kit; poly bag |
| V824KC-7 | Lumen X ® PL3 4 inch Round Back-Up Light; flange kit; Viz Pack |
| 824C-7 | Lumen X ® PL3 4 inch Round Back-Up Light; flange; poly bag |
| M824C-7 | Lumen X ® PL3 4 inch Round Back-Up Light; flange; bulk pack |
| M826C-7 | Lumen X ® PL3 4 inch Round Back-Up Light; grommet; bulk pack |
| V826KC-7 | Lumen X ® PL3 4 inch Round Back-Up Light; grommet kit; Viz Pack |
| 826KC-7 | Lumen X ® PL3 4 inch Round Back-Up Light; grommet kit; poly bag |
| Voltage | 12 Volts |
| Lens Color | Clear |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Shape | Round |
| Bulb/Diode Count | 7 |
| Mounting Type | Grommet |
| Light Color | White |
| termination | PL3 |
| Bulb Technology | LED |
| Container Type | Poly Bag |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |

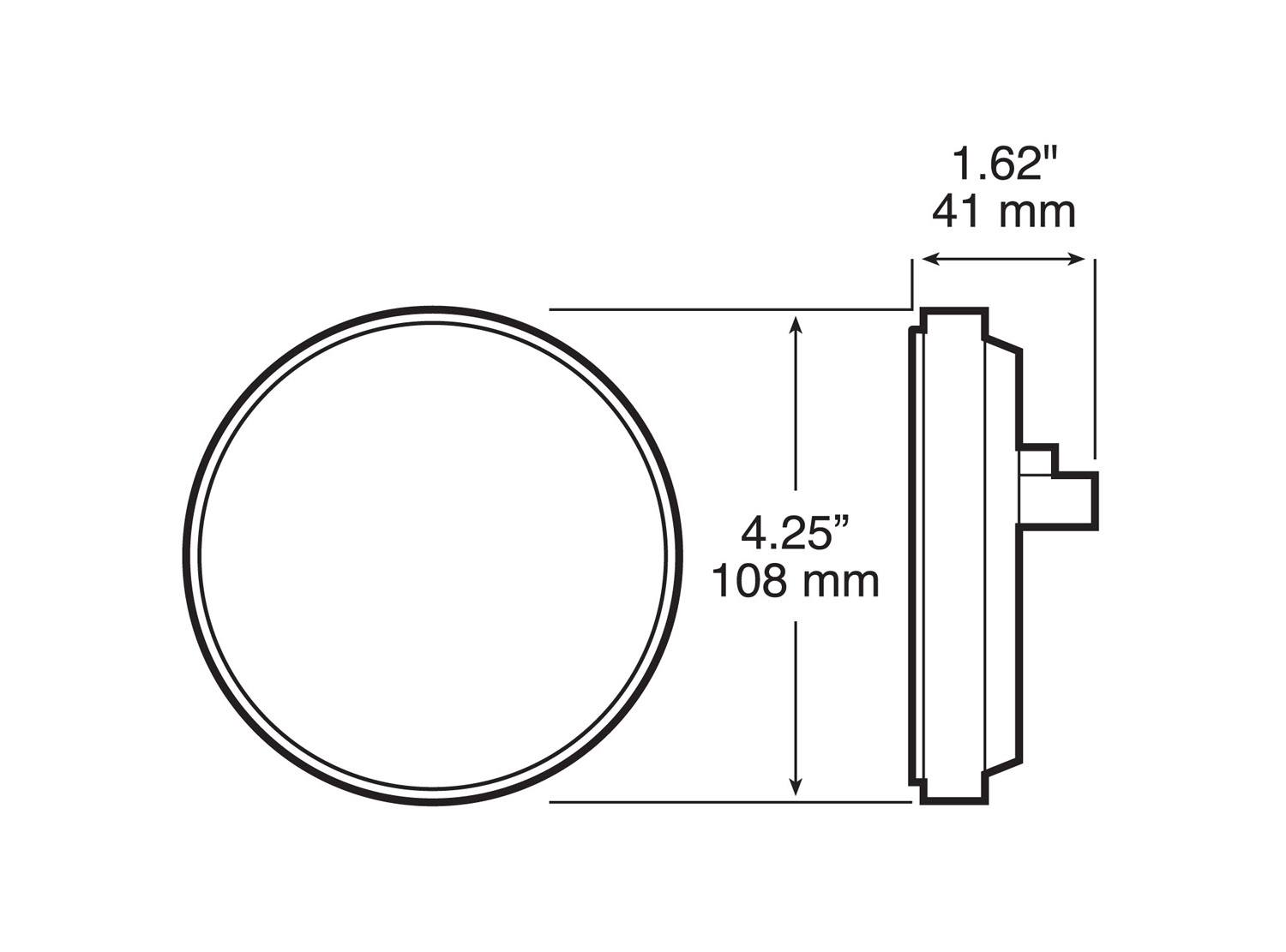

| Diameter | 4.25 Inch |
| Height | 4.25 Inch |
| Length | 4.25 Inch |
| Width | 1.62 Inch |
| Submersible | Yes |
| Truck-Lite Interchange | 4060C |
| Grote Interchange | 62691 |
