817C-9

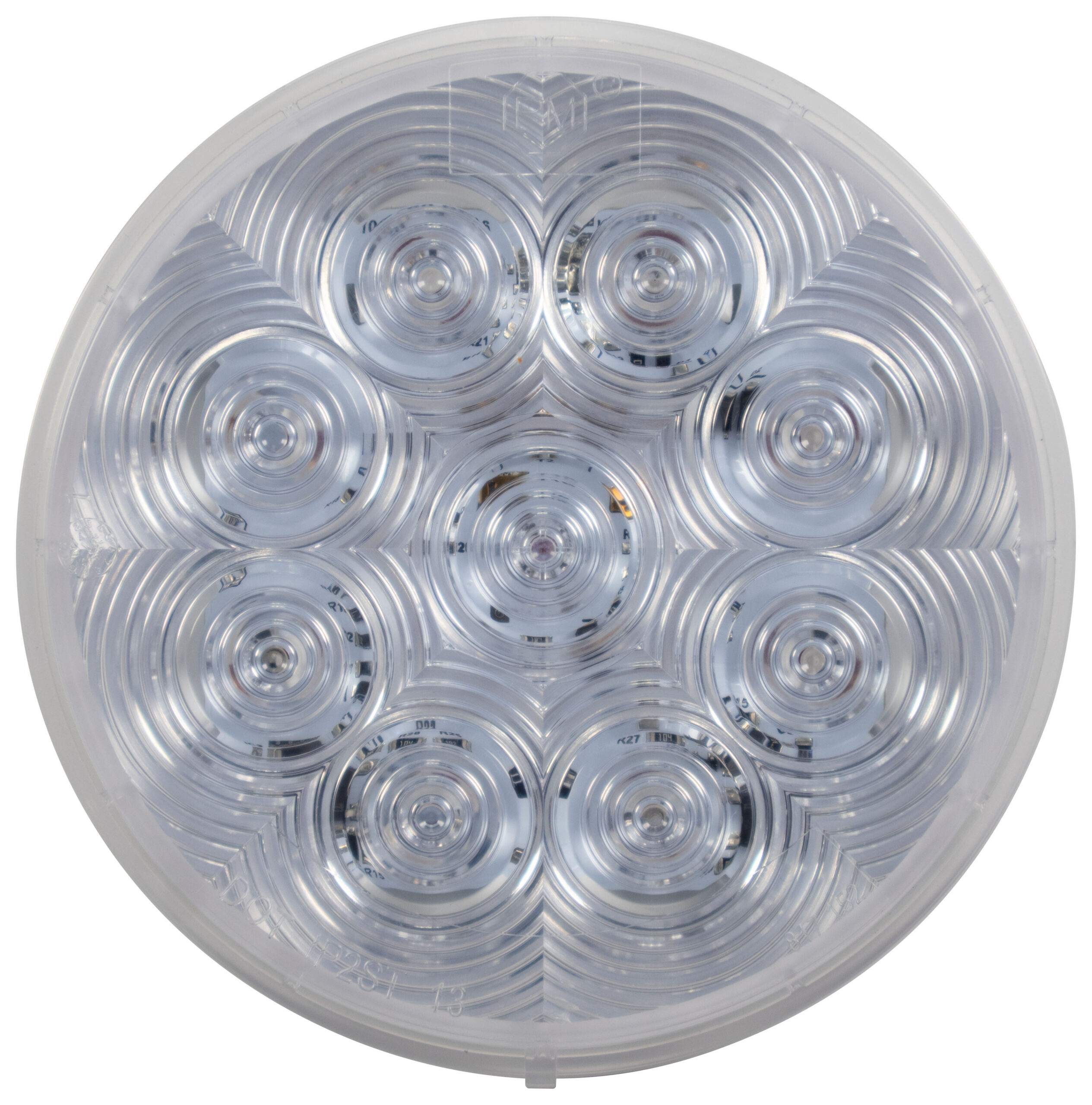

Lumen X ® AMP 4″ Round Back-Up Light, grommet, poly bag
817C-9
Lumen X ® AMP 4″ Round Back-Up Light, grommet, poly bag
- 4" Round Back-Up Light
- Multi-volt design compatible with 12 & 24 volt systems.
- Integral 30 degree angle silicone-sealed AMP receptacle.
- Single light meets DOT req. when properly mounted.
- Does not require “Top” positioning.
- 817 kit includes light, grommet, and 817-48 plug.
- -MP kit includes light, grommet, & 417-491MP pigtail.
- 818 kit includes light and 817-48 plug
- See matching stop / turn / tail light on page 4.
- See matching turn signal light on page 14.
Standard Order Quantity: 6
| 817KC-9-MP | Lumen X ® AMP 4″ Round Back-Up Light, grommet, male plug kit, poly bag |
| 818KC-9 | Lumen X ® AMP 4″ Round Back-Up Light, flange kit, poly bag |
| 817KC-9 | Lumen X ® AMP 4″ Round Back-Up Light, grommet kit, poly bag |
| M817C-9 | Lumen X ® AMP 4″ Round Back-Up Light, grommet, bulk pack |
| 818C-9 | Lumen X ® AMP 4″ Round Back-Up Light, flange, poly bag |
| M818C-9 | Lumen X ® AMP 4″ Round Back-Up Light, flange, bulk pack |
| Voltage | 12V / 24V |
| Lens Color | Clear |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Round |
| Bulb/Diode Count | 9 |
| Mounting Type | Grommet |
| Light Color | White |
| termination | AMP |
| Bulb Technology | LED |
| Container Type | Poly Bag |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |

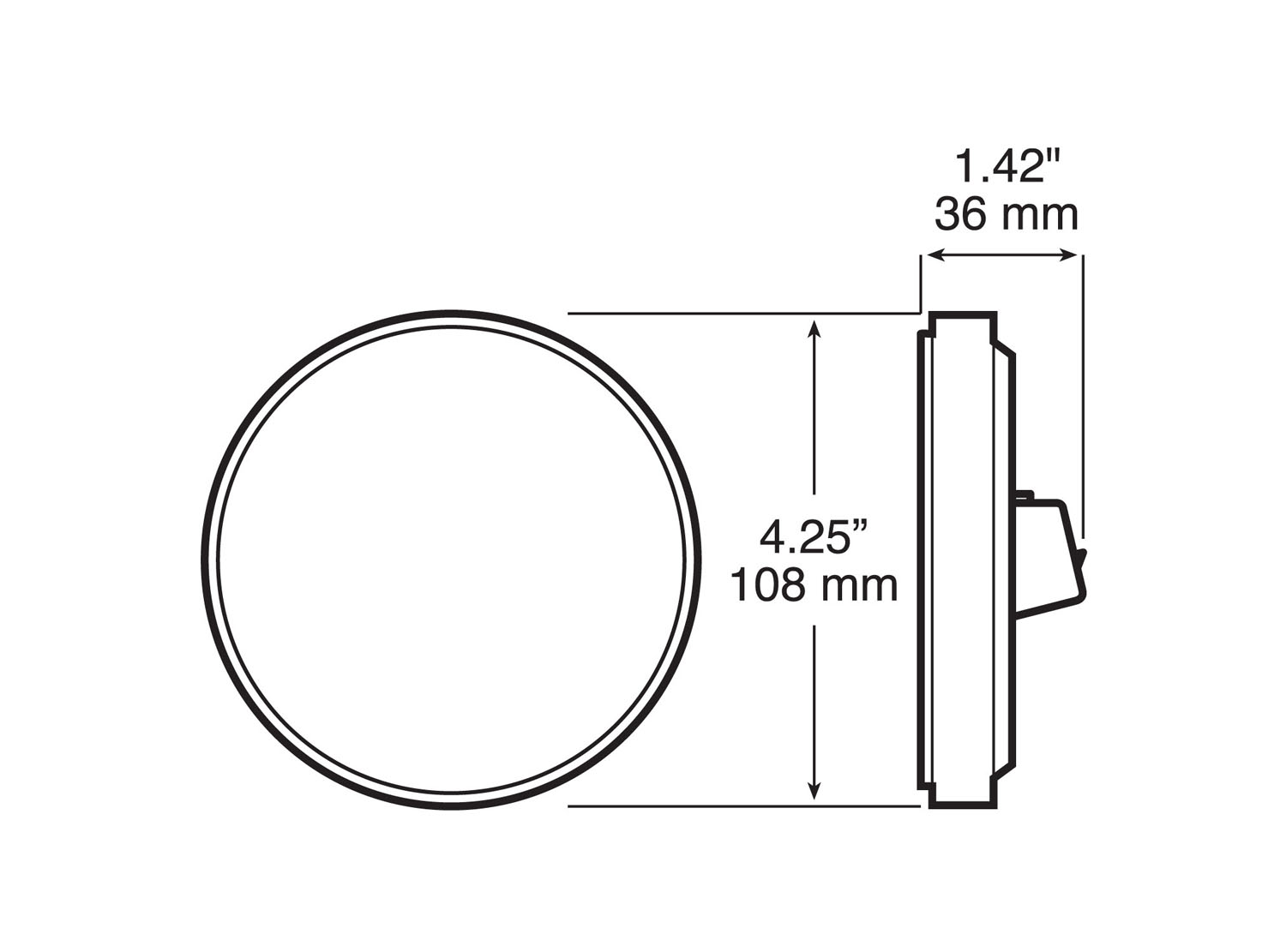

| Diameter | 4.25 Inch |
| Height | 4.25 Inch |
| Length | 4.25 Inch |
| Width | 1.42 Inch |
| Submersible | Yes |
| Truck-Lite Interchange | 44206C |
