826KC-9

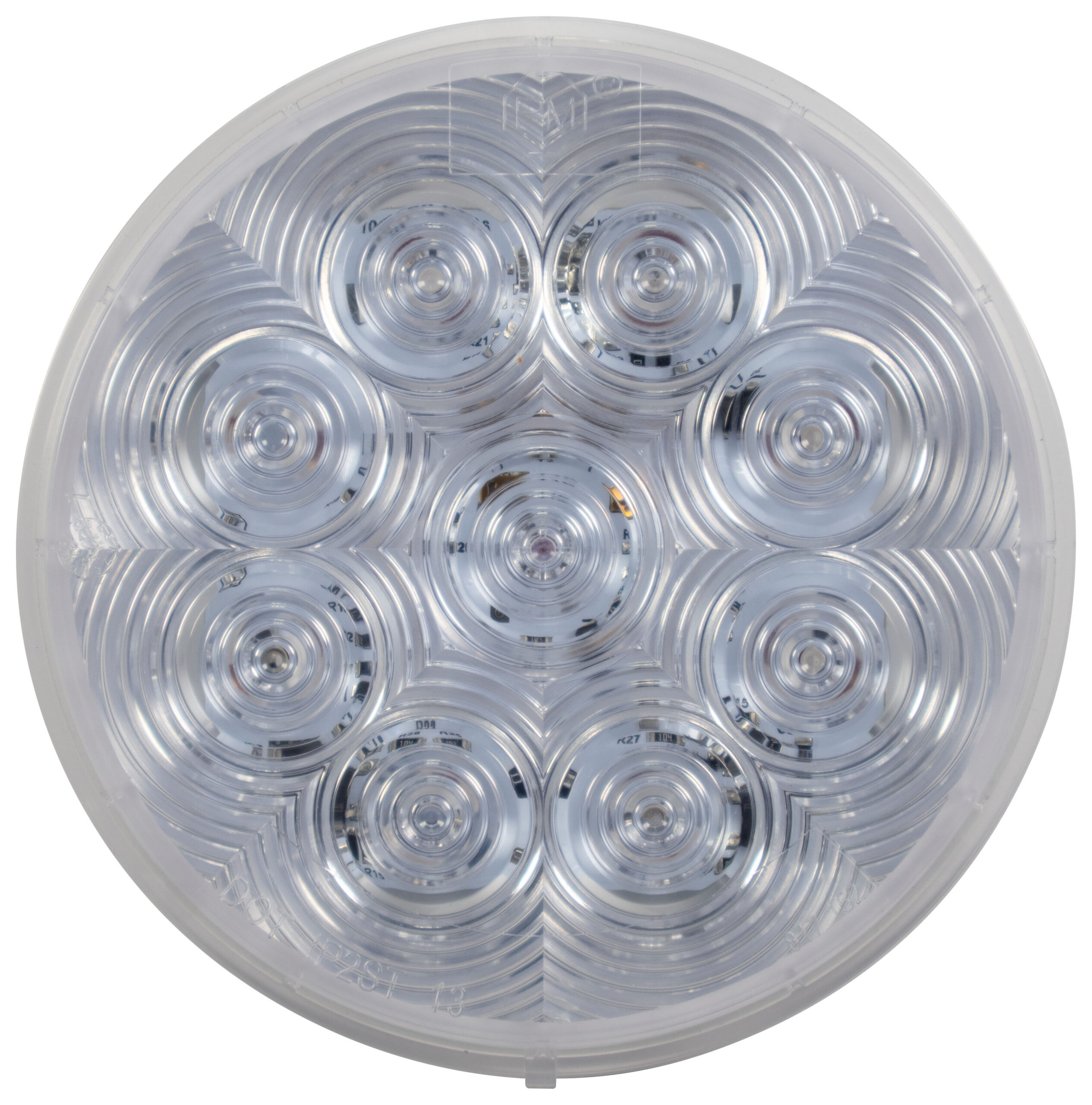

Lumen X ® PL3 4 inch Round Stop / Turn / Tail Light; grommet kit; poly bag
826KC-9
Lumen X ® PL3 4 inch Round Stop / Turn / Tail Light; grommet kit; poly bag
- 4" Round Stop / Turn / Tail Light
- Multi-volt design compatible with 12 & 24 volt systems.
- PL3 socket integrated into housing.
- Single light meets DOT req. when properly mounted.
- Does not require “Top” positioning.
- 826 kit includes light, grommet and 431-49 plug.
- 824 kit includes light and 431-49 plug.
- See matching stop / turn / tail light on page 4.
- See matching turn signal light on page 14.
Standard Order Quantity: 1
| 826C-9 | Lumen X ® PL3 4 inch Round Stop / Turn / Tail Light; grommet; poly bag |
| 824C-9 | Lumen X ® PL3 4 inch Round Stop / Turn / Tail Light; flange; poly bag |
| M824C-9 | Lumen X ® PL3 4 inch Round Stop / Turn / Tail Light; flange; bulk pack |
| M826C-9 | Lumen X ® PL3 4 inch Round Stop / Turn / Tail Light; grommet; bulk pack |
| 824KC-9 | Lumen X ® PL3 4 inch Round Stop / Turn / Tail Light; flange kit; poly bag |
| Voltage | 12V / 24V |
| Lens Color | Clear |
| Multi-Volt | Yes |
| Regulatory Compliance | DOT |
| Shape | Round |
| Bulb/Diode Count | 9 |
| Mounting Type | Grommet |
| Light Color | White |
| termination | PL3 |
| Bulb Technology | LED |
| Container Type | Poly Bag |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Diameter | 4.25 Inch |
| Height | 4.25 Inch |
| Length | 4.25 Inch |
| Width | 1.62 Inch |
| Submersible | Yes |
