P2268A-R-MV-BT2
LED ADR Compliant Combination Side Clearance/Marker Light; 200 mm/8 inch, .180 bullets.; poly bag
P2268A-R-MV-BT2
LED ADR Compliant Combination Side Clearance/Marker Light; 200 mm/8 inch, .180 bullets.; poly bag
- 168-09 bracket mounts 2268 lights on 1.125" (29 mm) centers.
- 2268A-R-MV has 2.5 meter leads. 2268A-R-MV-BT2 has 200 mm leads.
- Certified to applicable ADR (Australian Design Rules) regulations. NOT ECE COMPLIANT
- Flat-wire sheathed cable for simplified crimp connections, less bulk.
- Hardwired design features 18-gauge leads.
- Low profile, narrow surface-mount design suits narrow rails.
- Meets IP67 ingress rating.
- Multi-volt design is compatible with both 12 and 24 volt systems.
- Multiple mounting hardware options.
- Recommended fastening: 4 mm screw.
- See Peterson Master Catalog pages 178-179 for bracket and bezel dimensions.
- Welded rear housing, advanced surface-mount diodes, and more precise separation between red and amber illumination.
Standard Order Quantity: 1
| P2268A-R-MV | LED ADR Compliant Combination Side Clearance/Marker Light; 2.5 m/98.5 inch stripped leads; poly bag |
| 2268A-R-MV-BT2 | LED ADR Compliant Combination Side Clearance/Marker Light; 200 mm/8 inch, .180 bullets.; bulk pack |
| 2268A-R-MV | LED ADR Compliant Combination Side Clearance/Marker Light; 2.5 m/98.5 inch stripped leads; bulk pack |
| B168-092 | alum. brush guard & gasket kit (mfg. pack - std qty 100) |
| B168-09 | bracket, black (mfg. pack - std qty 100) |
| B168-10 | chrome bezel (mfg. pack - std qty 100) |
| B2268-18 | gasket for use w/o bracket (mfg. pack - std qty 100) |
| B168-181 | gasket for use with B168-092 (mfg. pack - std qty 100) |
| B168-182 | gasket for use with B168-10 (mfg. pack - std qty 100) |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |

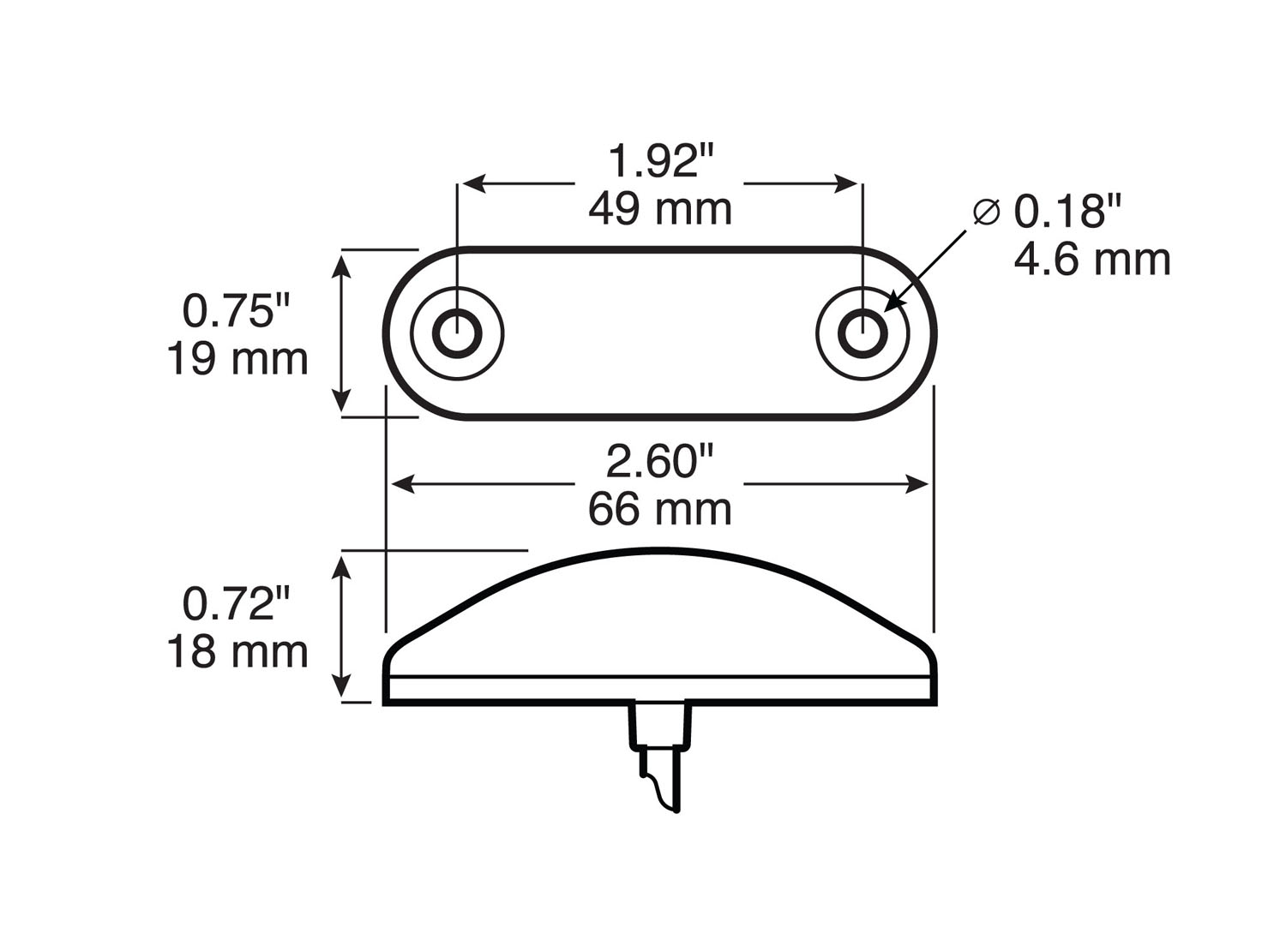

| Height | 0.75 Inch |
| Length | 2.6 Inch |
| Voltage | 12V / 24V |
| Width | 0.72 Inch |
| Integral Reflex | No |
| Mounting Type | Surface |
| Ground Type | Wire |

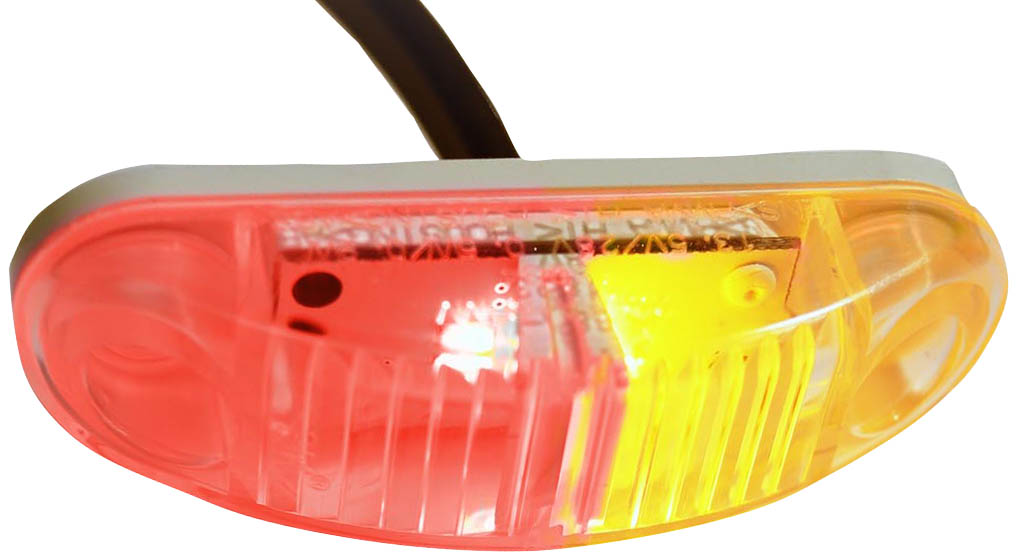

| Light Color | Amber + Red |
| Bulb/Diode Count | 2 |
| Lens Color | Clear |
| Bulb Technology | LED |
| Regulatory Compliance | ADR |
| Shape | Oval |
| Container Type | Poly Bag |
| Multi-Volt | Yes |
