V504HF

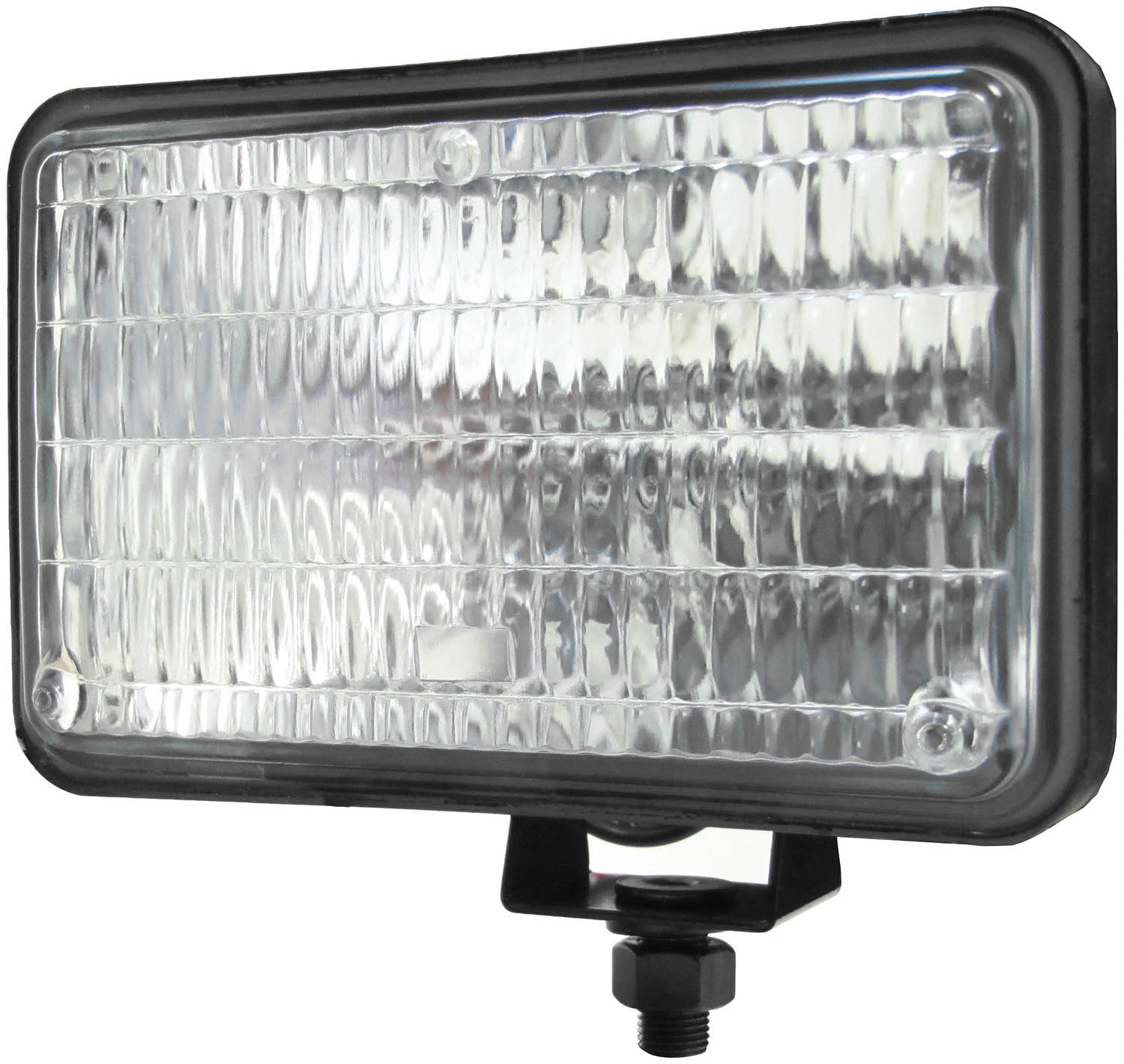

4.5 inch X 7 inch Tractor & Work Light; flood; Viz Pack
V504HF
4.5 inch X 7 inch Tractor & Work Light; flood; Viz Pack
- Trapezoid version outputs 3120 candelas, 860 lumens.
- Available in both trapezoid (HT) and flood (HF) beam patterns.
- Replaceable 55W H3 halogen bulb.
- Flood version outputs 3800 candelas, 813 lumens.
- Nylon housing and black-plated hardware for corrosion resistance.
Standard Order Quantity: 3
| V504HT | 4.5 inch X 7 inch Tractor & Work Light; trapezoid; Viz Pack |
| VH550 | repl. bulb (Viz Pack - std qty 12) |

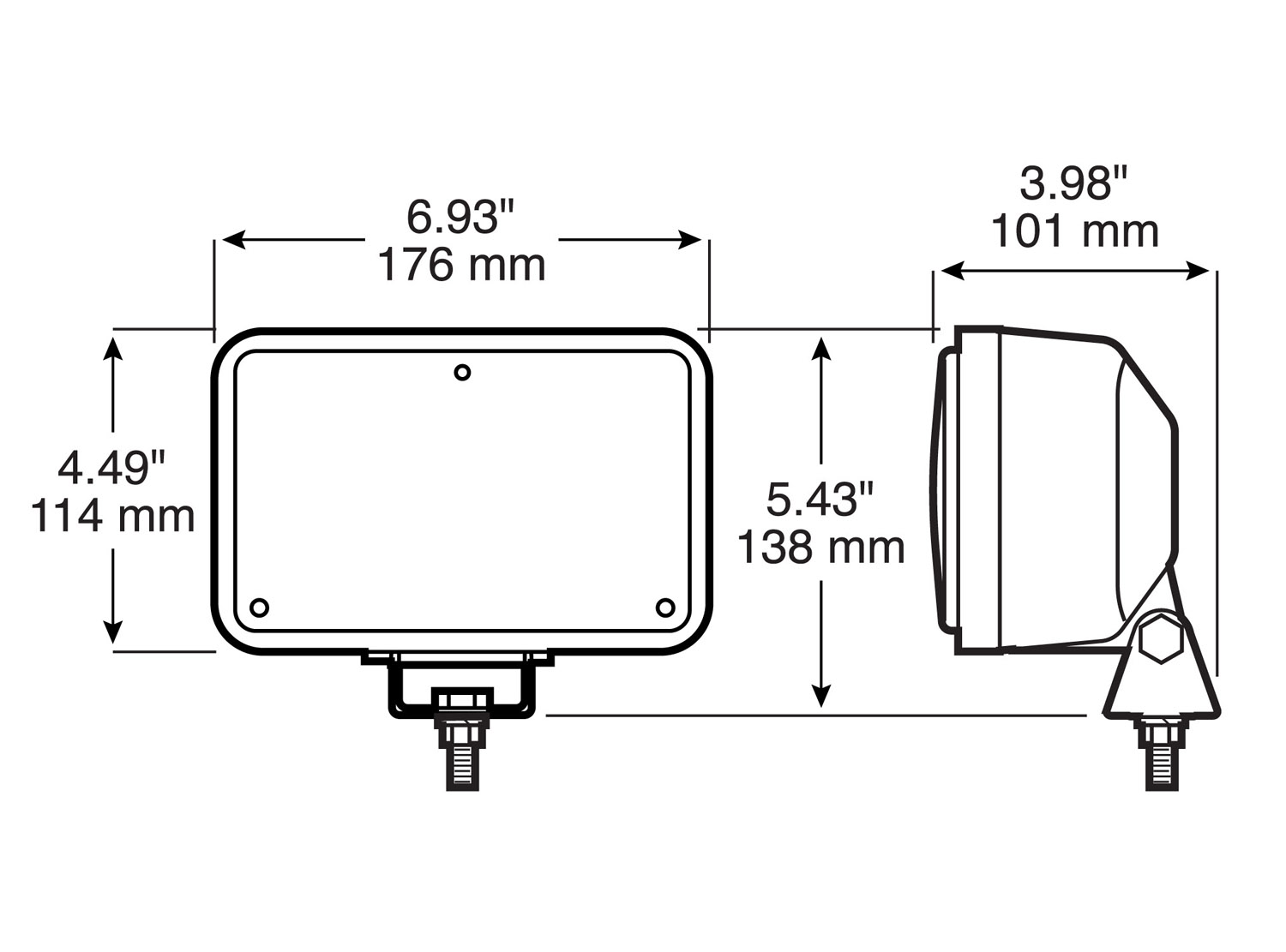

| Mounting Type | Stud |
| Width | 3.96 Inch |
| Length | 6.93 Inch |
| Container Type | Viz Pack |
| Bulb Technology | Halogen |
| Replaceable Bulb | Yes |
| Removable Lens | Yes |
| Shape | Rectangular |
| Filament Quantity | 1 |
| Bulb/Diode Count | 1 |
| Light Color | White |
| termination | Stripped Wire |
| Exterior use | Yes |
| Beam Pattern | Flood |
| Lens Color | Clear |
| Coil cord | No |
| Voltage | 12 Volts |
| Integral Switch | No |
| Height | 4.49 Inch |
| Submersible | No |
| Truck-Lite Interchange | 629WD |
| Grote Interchange | 63181-5 |
