V306R
Surface- Stop / Turn / Tail Light; red; Viz Pack
V306R
Surface- Stop / Turn / Tail Light; red; Viz Pack

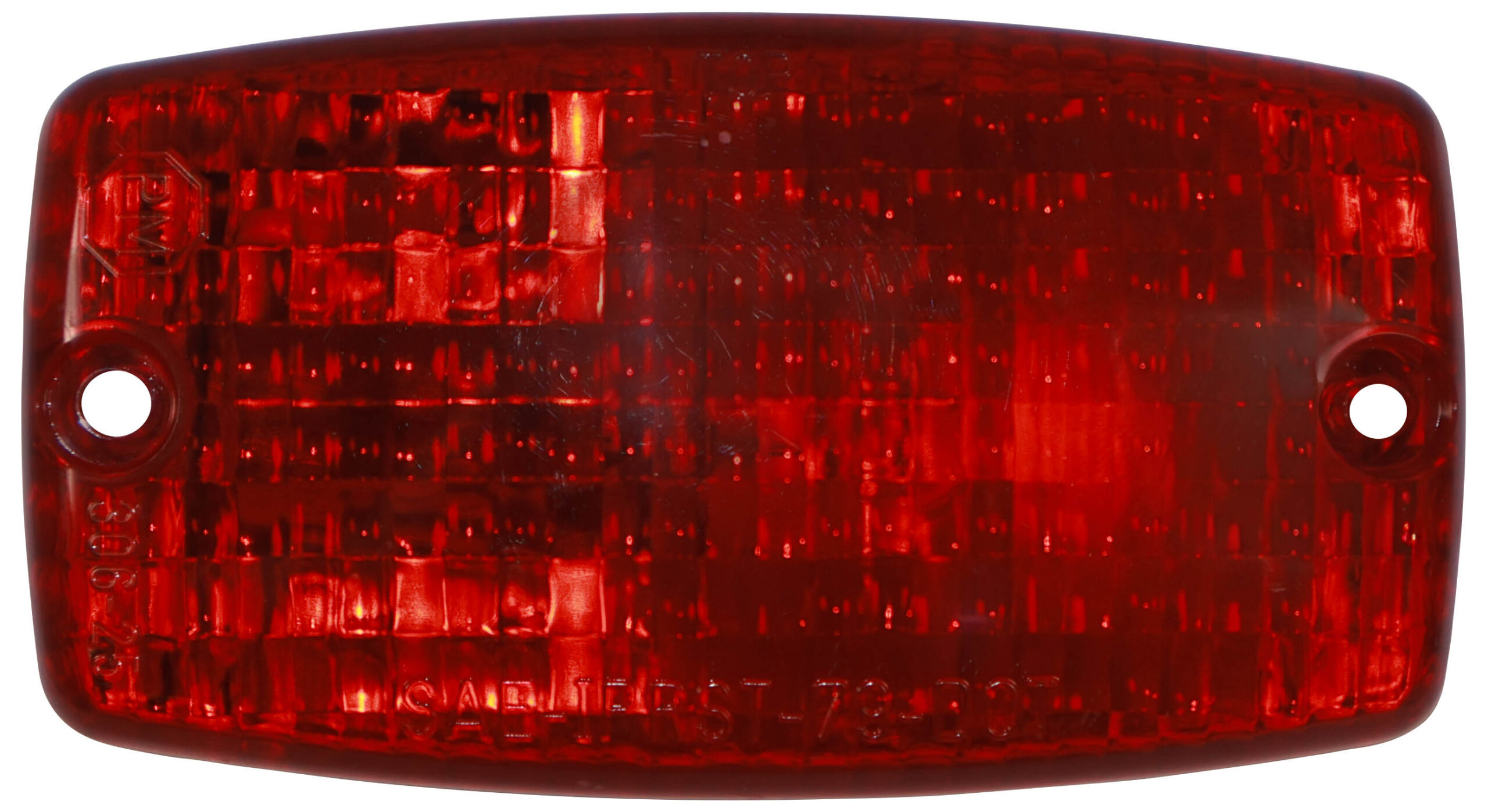

- Rectangular, surface-mount light functions as rear S/T/T light.
- See matching 393C back-up light on page 30.
- Features polycarbonate lens, galvanized steel base plate, dual-filament bulb, and tough plastic guard to protect lead wires.
- See matching 306A turn signal on page 15.
- Mounts on 3 1/2" centers and grounds through mounting screw.
- For use on vehicles under 80" wide; has less than 75 sq. cm of effective, projected luminous lens area.
Standard Order Quantity: 6
| 306R | Surface- Stop / Turn / Tail Light; red; poly bag |
| Bulb Technology | Incandescent |
| Bulb/Diode Count | 1 |
| Container Type | Viz Pack |
| Filament Quantity | 2 |
| Ground Type | Mounting Hardware |
| Height | 2.68 Inch |
| Integral Reflex | No |
| Length | 4.58 Inch |
| Lens Color | Red |
| Light Color | Red |
| Mounting Type | Surface |
| Regulatory Compliance | DOT |
| Replaceable Bulb | Yes |
| Shape | Rectangular |
| Submersible | No |
| termination | Stripped Wire |
| Voltage | 12 Volts |
| W/ License Light | No |
| Width | 1.82 Inch |
