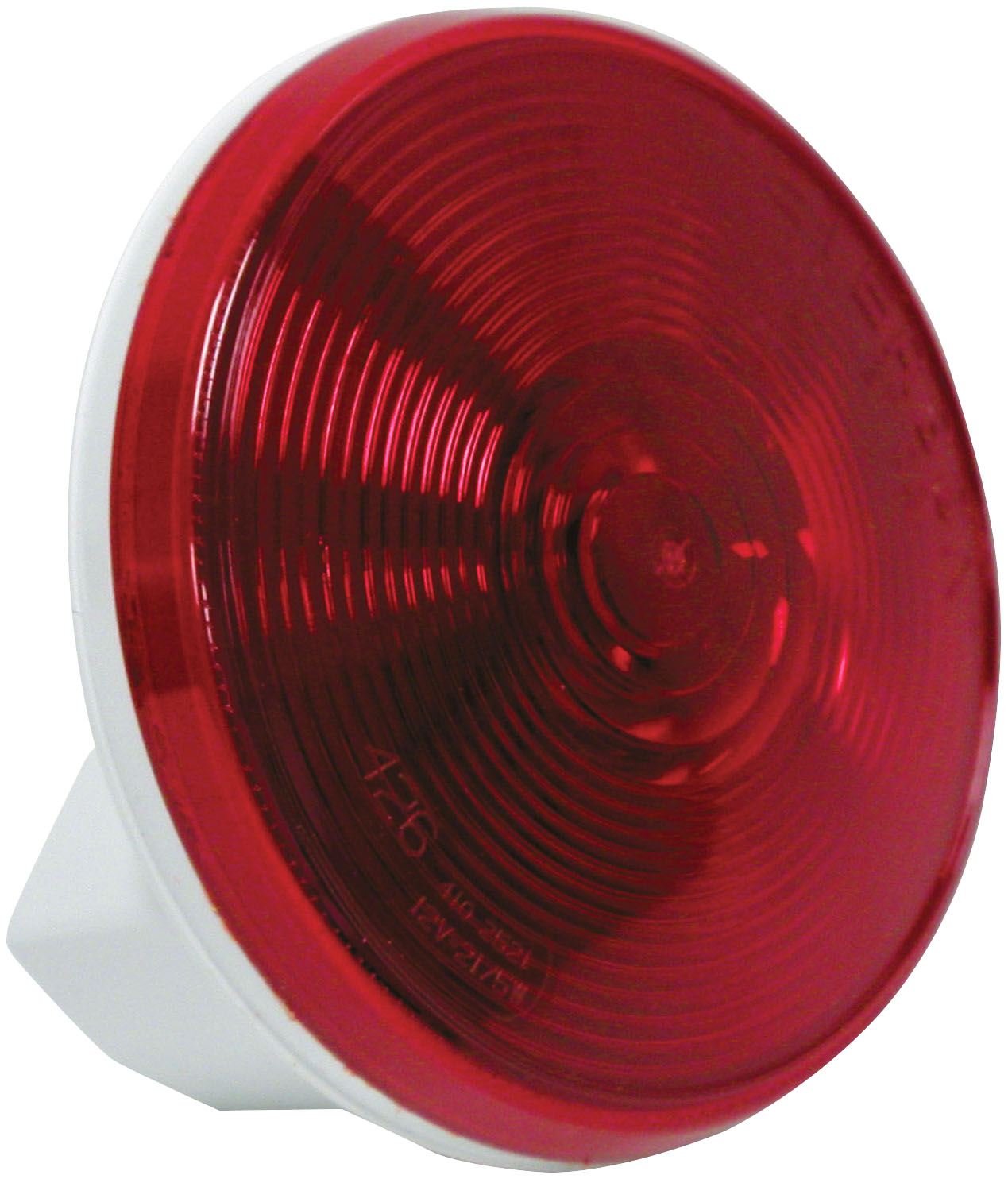

426R
4 inch Round Stop / Turn / Tail Light; red; poly bag
426R
4 inch Round Stop / Turn / Tail Light; red; poly bag
- Requires mounting grommet and 3-wire plug for installation.
- Long-life krypton, dual-filament, 2.1 / .59 amp, 32 / 3 cp, bulb.
- Can be flange-mounted using 424-09 black snap-on flange on page 50.
- For an LED alternative, consider Peterson 826 series.
- See matching 415 back-up light on page 29.
- See matching 426A turn signal on page 13.
- Viz-Pack versions have gray housing.
- Long-Life Stop / Turn / Tail Light
- Kits include light, grommet, and plug.
Standard Order Quantity: 1
| V426R | 4 inch Round Stop / Turn / Tail Light; red; Viz Pack |
| V426KR | 4 inch Round Stop / Turn / Tail Light; red kit; Viz Pack |
| 426KR | 4 inch Round Stop / Turn / Tail Light; red kit; poly bag |
| M426R | 4 inch Round Stop / Turn / Tail Light; red; bulk pack |
| M426KR | 4 inch Round Stop / Turn / Tail Light; red kit; bulk pack |
| Bulb Technology | Incandescent |
| Bulb/Diode Count | 1 |
| Container Type | Poly Bag |
| Diameter | 4.25 Inch |
| Filament Quantity | 2 |
| Ground Type | Plug |
| Height | 4.25 Inch |
| Integral Reflex | No |
| Length | 4.25 Inch |
| Lens Color | Red |
| Light Color | Red |
| Mounting Type | Grommet |
| Multi-Volt | No |
| Regulatory Compliance | DOT |
| Removable Lens | No |
| Replaceable Bulb | No |
| Shape | Round |
| Submersible | No |
| termination | PL3 |
| Voltage | 12 Volts |
| W/ License Light | No |
| Width | 2.06 Inch |
| Truck-Lite Interchange | 40202R |
| Truck-Lite Interchange | 40242R |
| Truck-Lite Interchange | 40247R |
| Grote Interchange | 52772 |
