M138A
Bull’s Eye PC-Rated Clearance/Side Marker Light; amber; bulk pack
M138A
Bull’s Eye PC-Rated Clearance/Side Marker Light; amber; bulk pack
- Clearance/Side Marker Light
- For an LED alternative, consider Peterson 38 series.
- Blue, clear and green lenses available for accessory use only.
- Combination side marker and clearance light when properly mounted.
- V138-15 contains two lenses per pack.
- Acrylic lens snaps onto housing.
- Features two 15,000-hour-rated long-life bulbs.
- Double bulls-eye twin bulb design.
- Compatible with 106-09 chrome accessory guard. See Page 47.
- Single 4.5" wire connection, grounds through mounting hardware.
Standard Order Quantity: 100
| M138R | Bull’s Eye PC-Rated Clearance/Side Marker Light; red; bulk pack |
| M138G | Bull’s Eye PC-Rated Clearance/Side Marker Light; green; poly bag |
| M138C | Bull’s Eye PC-Rated Clearance/Side Marker Light; white; poly bag |
| V138R | Bull’s Eye PC-Rated Clearance/Side Marker Light; red; Viz Pack |
| V138A | Bull’s Eye PC-Rated Clearance/Side Marker Light; amber; Viz Pack |
| 138R | Bull’s Eye PC-Rated Clearance/Side Marker Light; red; poly bag |
| 138A | Bull’s Eye PC-Rated Clearance/Side Marker Light; amber; poly bag |
| V106-09 | chrome guard (Viz Pack - std qty 6) |
| B138-15A | amber lens (bulk pack - std qty 100) |
| B106-09 | chrome guard (bulk pack - std qty 60) |
| V138-15A | amber lens (Viz Pack - std qty 6) |
| 138-15A | amber lens (poly bag - std qty 10) |
| V138-15R | red lens (Viz Pack - std qty 6) |
| 138-15R | red lens (poly bag - std qty 10) |
| B138-15C | clear lens (bulk pack - std qty 100) |
| B138-15G | green lens (bulk pack - std qty 100) |
| B138-15B | blue lens (bulk pack - std qty 100) |
| B138-15R | red lens (bulk pack - std qty 100) |

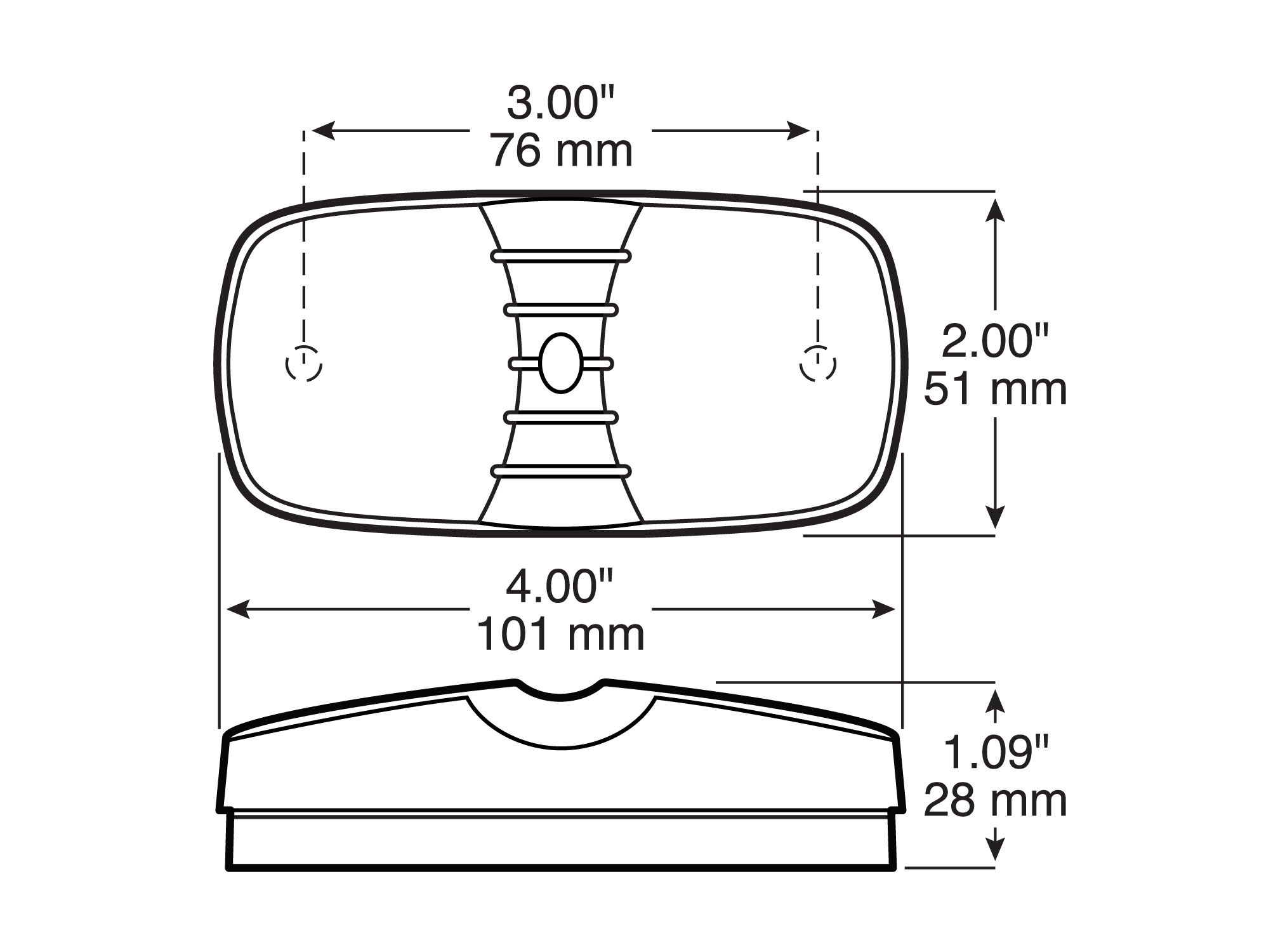

| Height | 2 Inch |
| Length | 4 Inch |
| Voltage | 12 Volts |
| Width | 1.09 Inch |
| Integral Reflex | No |
| Mounting Type | Surface |
| Ground Type | Wire |
| PC Rated | Yes |
| Light Color | Amber |
| Bulb/Diode Count | 2 |
| Replaceable Bulb | Yes |
| Lens Color | Amber |
| Bulb Technology | Incandescent |
| Removable Lens | Yes |
| Filament Quantity | 1 |
| Regulatory Compliance | DOT |
| Shape | Rectangular |
| Container Type | Bulk Pack |
| Mounting Centers | 3 Inch |
| Submersible | No |
| Grote Interchange | 46793-3 |
