176-093
Channel-Mount Bracket for 3/4 inch Lights; for curved surfaces; poly bag
176-093
Channel-Mount Bracket for 3/4 inch Lights; for curved surfaces; poly bag

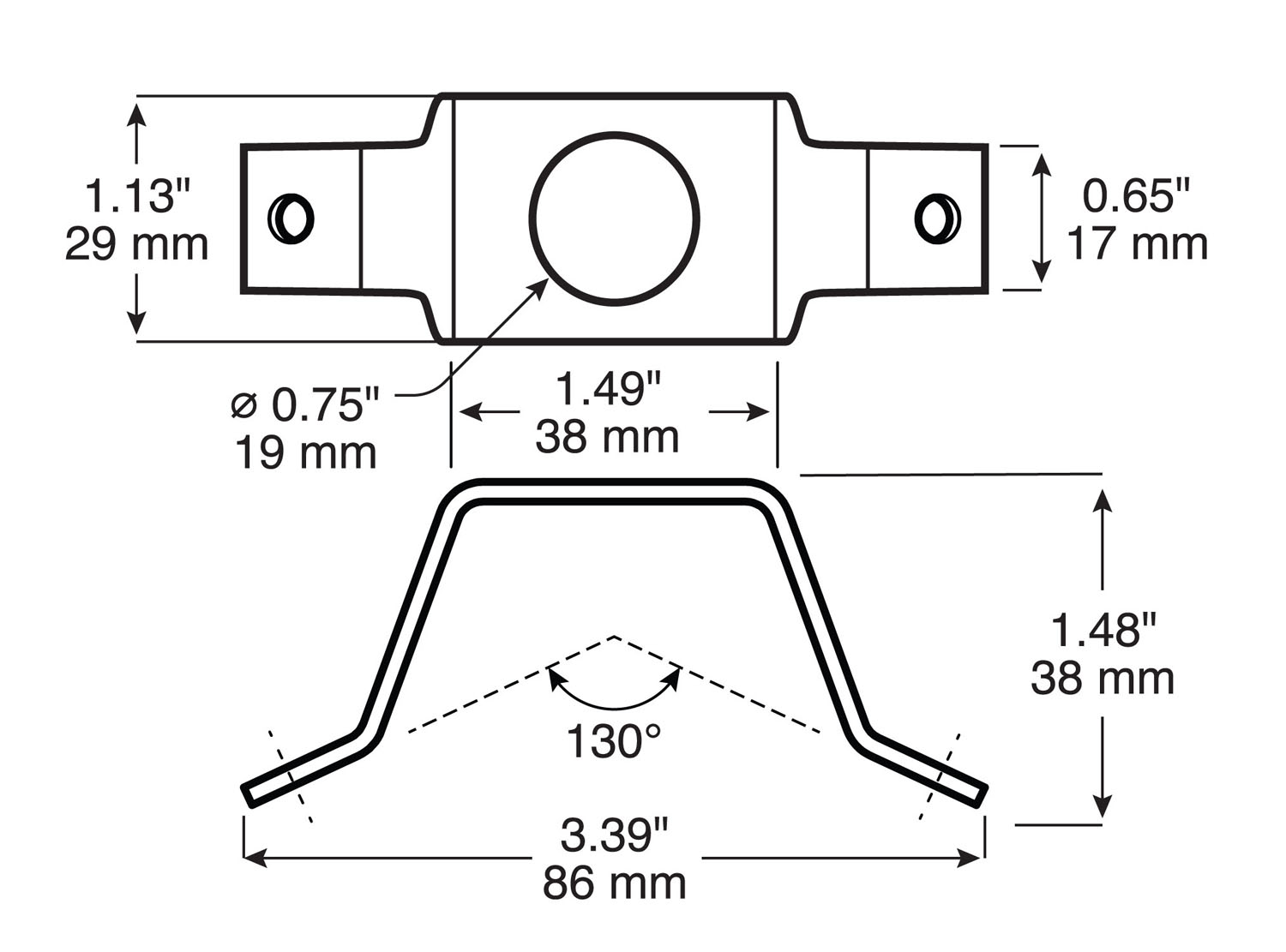

- Channel-Mount Bracket for 3/4" Lights
- Shape: channel
- Fits Peterson 3/4" diameter single-diode "dot" lights.
- 177-18 grommet (provided with all 3/4" series lights) is required for mounting light into bracket.
- Corrosion-resistant aluminum alloy construction for extra durability.
- Mounts on 3" centers with two screws or bolts. Hardware not included.
- Min. Channel Width 1.13" at 1.30" Depth
- Min. Channel Width 1.00" at 1.15" Depth
- Min. Channel Width 0.65" at 0.83" Depth
Standard Order Quantity: 1
| Container Type | Poly Bag |
| Height | 1.13 Inch |
| Length | 3.39 Inch |
| Material | Aluminum |
| Mounting Type | Surface |
| Shape | Channel |
| Width | 1.48 Inch |
