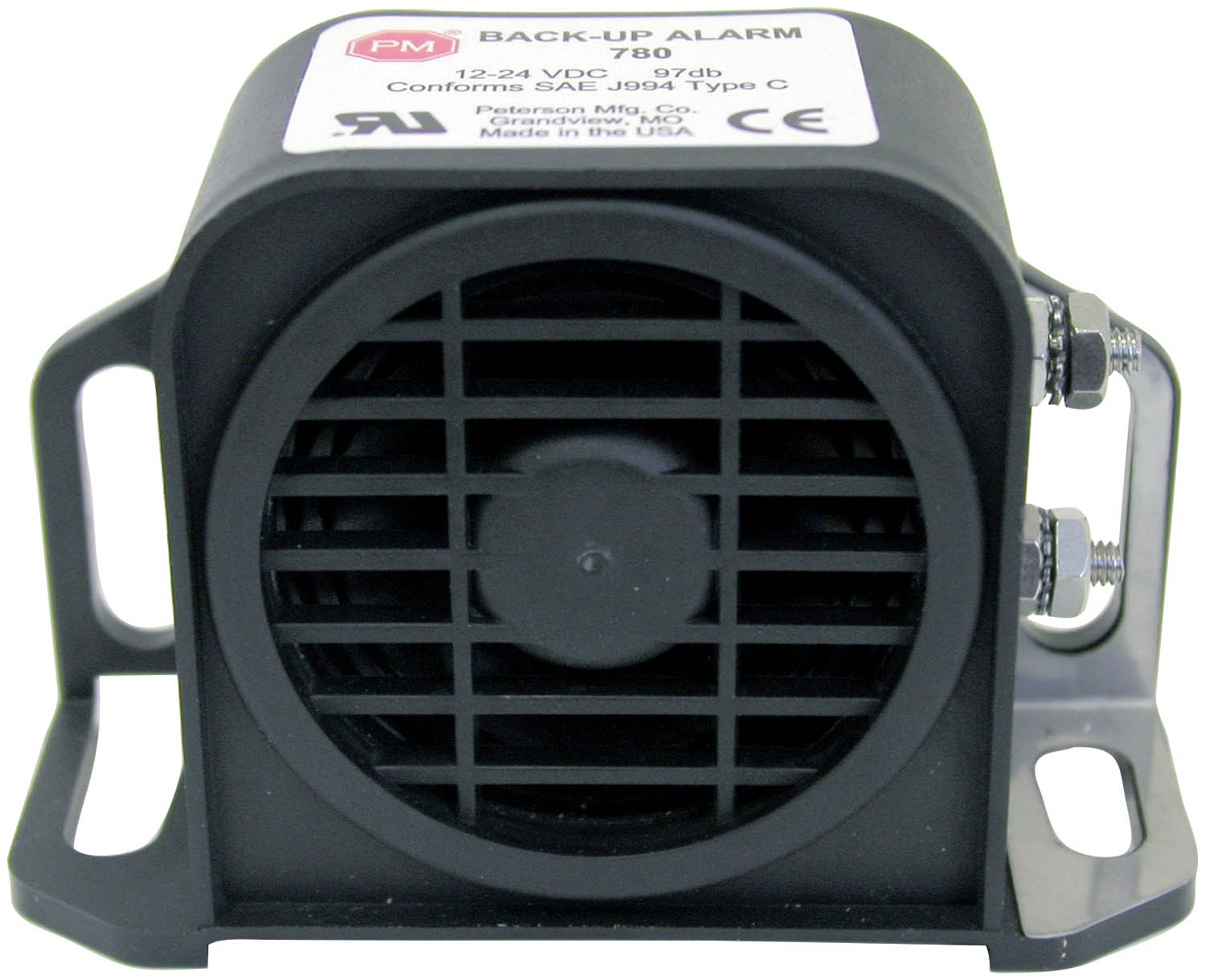

V780
Back-Up Alarm; 97 dB; Viz Pack
V780
Back-Up Alarm; 97 dB; Viz Pack
- Back-Up Alarm
- -40º to +185º F temperature range.
- 12-24 volt operating range.
- Two versions, 97-decibel (780) and 102-decibel (781).
- ABS housing and epoxy-sealed internal components for vibration and moisture protection.
- Less than 0.6 amp draw.
- Meets IP65 ingress protection standard.
- Unit may be grounded through mounting screw.
- 780 97 dB version meets SAE J994 Type C requirements.
- 781 102 dB version meets SAE J994 Type F requirements.
Standard Order Quantity: 6
| 780 | Back-Up Alarm; 97 dB; box |
| Multi-Volt | Yes |
| termination | Threaded Post |
| Regulatory Compliance | SAE J994 Type C |
| Voltage | 12V / 24V |
| Container Type | Viz Pack |
| Mounting Type | Surface |
| Maximum Voltage | 24 Volts |
| Decibel Rating | 97 Decibels |
| Height | 2.7 Inch |
| Length | 3.9 Inch |
| Mounting Centers | 3.25 Inch |
| Width | 1.6 Inch |
| Grote Interchange | 73040-5 |
| Truck-Lite Interchange | 92900-1 |
